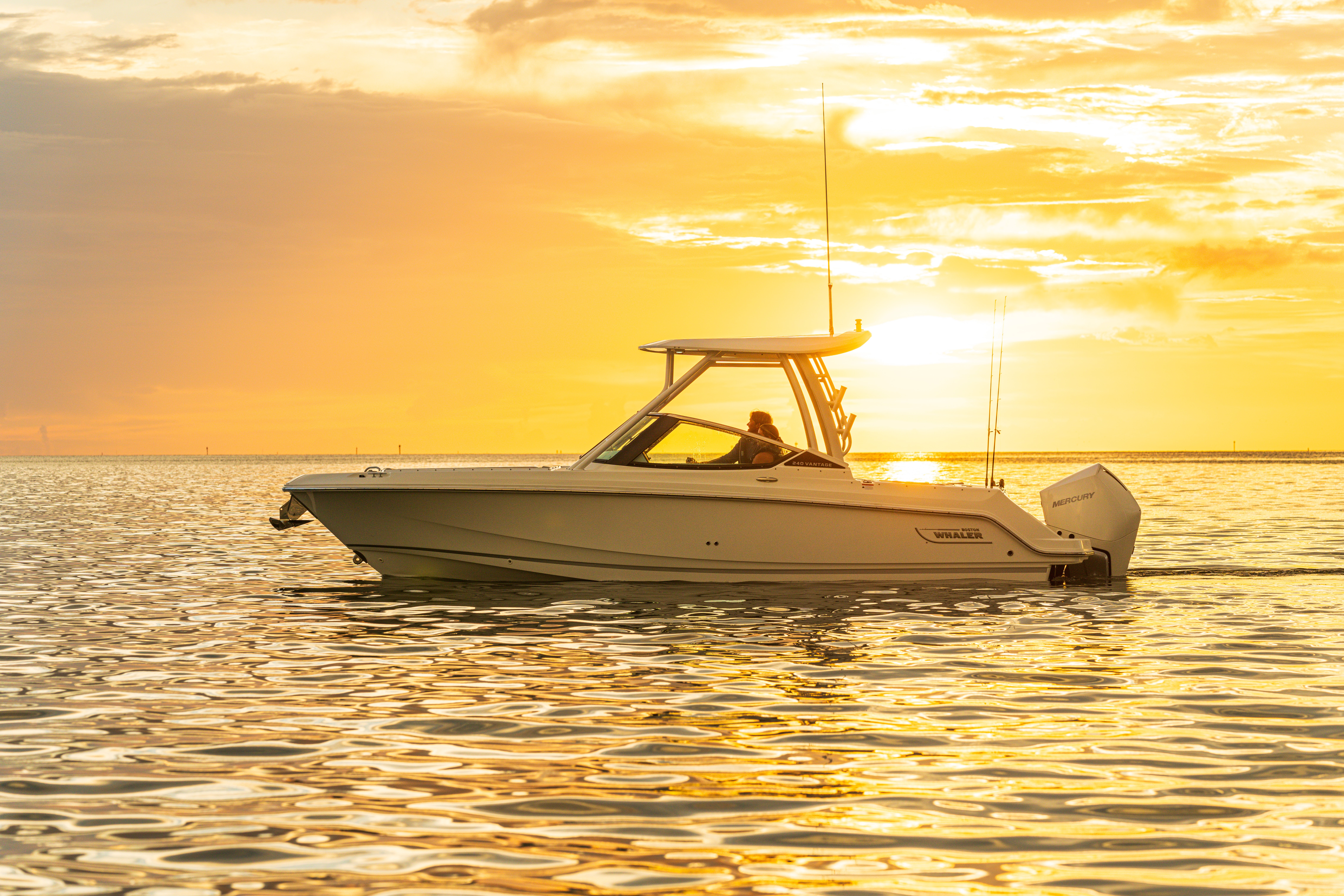

240 Vantage
Family friendly and outfitted for fun, the 240 Vantage is a sleek, stylish 24-foot dual console boat with everything you need to fall in love with the water all over again. A brilliant array of fishing, cruising, beaching, watersports and entertaining features makes this multi-purpose boat ideal for everyone from the youngest to the wisest. Low-maintenance design and Whaler’s legendary unsinkable hull make it exceptionally stable, safe and seaworthy, instilling confidence no matter where you roam.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.
Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
240 VANTAGE FEATURES
- Family-friendly layout with optional cockpit utility center
- Convertible port lounge seating with storage
- Innovative bow available with both windlass and boarding ladder
- Portside console includes head and sink for all-day comfort
- Optional integrated hardtop provides additional weather protection
- Intuitive helm station available with stylish acrylic dash options available
- Fishing features include convenient rod storage accessible via the bow, a centerline fishbox and an optional aft livewell
Capacity
11
Persons Capacity
111 gallons (420.18 L)
Fuel Capacity
2,800 lbs (1,270 kg)
Maximum Weight Capacity
4,000 lbs (1,814 kg)
Swamped Capacity
Dimensions
24’ 2” (7.36 m)
L.O.A. (on centerline, from bow to engine mounting location)
8’ 6” (2.59 m)
Beam
18" (0.46 m)
Draft
25’ 6” (7.58 m)
L.O.A (with platforms)
25” (0.64 m)
Transom Height
Engines
400 HP (298 kW)
Maximum Horsepower
700 lbs (318 kg)
Maximum Engine Weight
250 HP (186 kW)
Minimum Horsepower
Weight
5,837 lbs (2648 kg)
Weight (with engine, fuel and water)
4,360 lbs (1,979 kg)
Weight (dry, no engine)
11
Persons Capacity
111 gallons (420.18 L)
Fuel Capacity
2,800 lbs (1,270 kg)
Maximum Weight Capacity
4,000 lbs (1,814 kg)
Swamped Capacity
24’ 2” (7.36 m)
L.O.A. (on centerline, from bow to engine mounting location)
8’ 6” (2.59 m)
Beam
18" (0.46 m)
Draft
25’ 6” (7.58 m)
L.O.A (with platforms)
25” (0.64 m)
Transom Height
400 HP (298 kW)
Maximum Horsepower
700 lbs (318 kg)
Maximum Engine Weight
250 HP (186 kW)
Minimum Horsepower
5,837 lbs (2648 kg)
Weight (with engine, fuel and water)
4,360 lbs (1,979 kg)
Weight (dry, no engine)
Standard features & Options
12-V receptacle
Bow bolsters
Bow cushions with backrests
Bow walkthrough block off panel
Drink holders (4)
Fiberglass lids with latches (3)
Integrated centerline bow cooler (50 quarts)
Recessed storage / cup holder compartment
USB receptable
Welded stainless steel forward grab rails
12V receptacle
Access panel to electronics
Cast stainless steel steering wheel with urethane grip
Compass
Dash visor
Drink holders (2)
Electrical switch panel with circuit breaker protection
Electronics mounting surface
Helm footrests
Storage bucket
Tempered glass windshield
Trash door
Windshield wiper (starboard)
Integrated hardtop
26” cockpit depth
8” stainless steel cleats - bow (2), stern with stainless steel hawse pipes (2), pop-up spring line (2)
Anchor storage
Bow and stern eyes
Cockpit coaming bolsters
Cockpit courtesy lights - dual color blue/white
Covered telescoping swim ladder with stainless steel grab rail
Heavy-duty rub rail
Insulated in floor fishbox with overboard drain and compression latches, midship
Motorwell drains (2)
Rod holders - gunnel mounted stainless steel (4)
Self-bailing cockpit sole
Stainless steel grab rails
Stern stainless steel hawse pipes with drink holders (2)

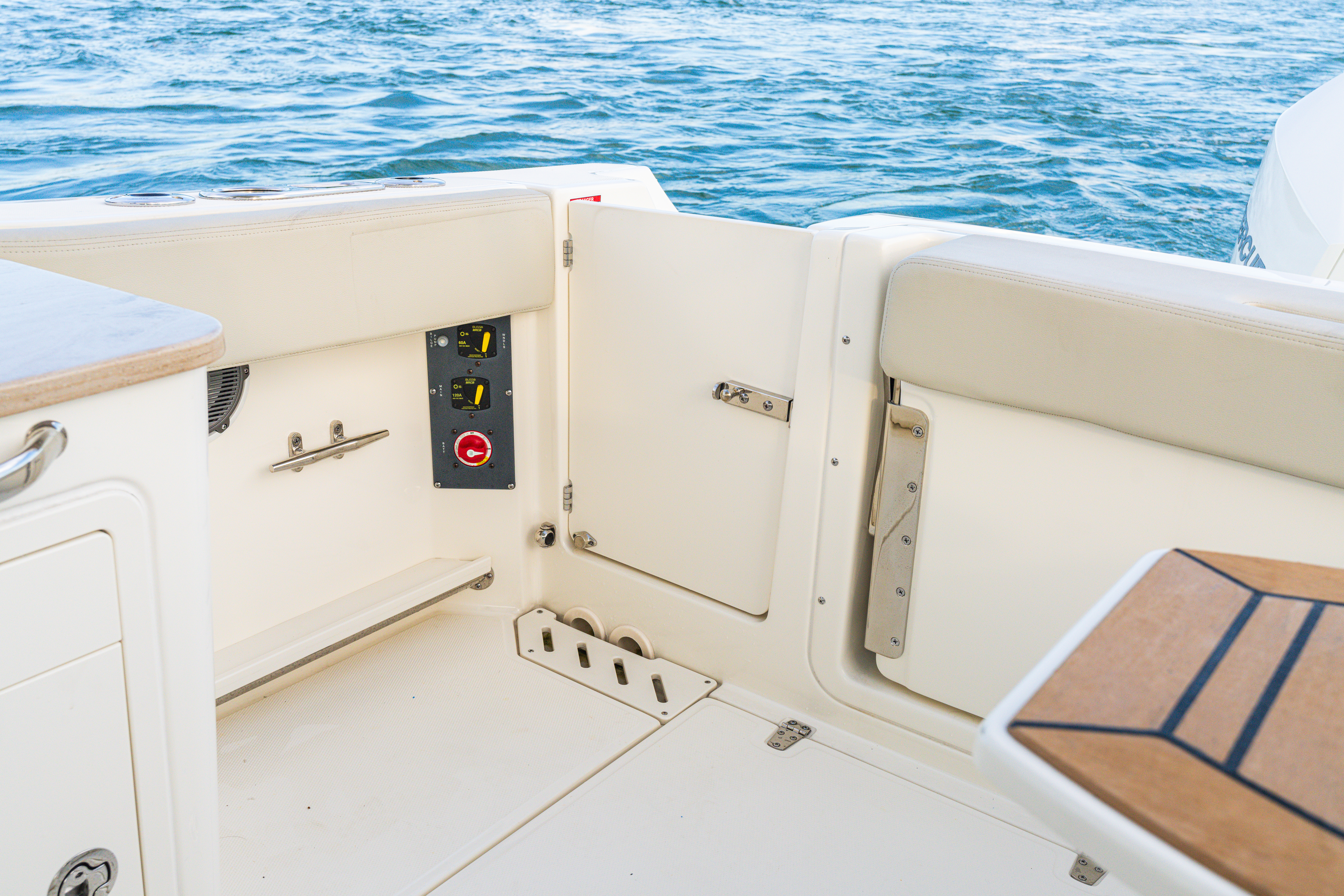

Transom door with stainless steel latch
Dash visor
Gasketed lockable entry door with dual gaskets and draw down latch.
Grab rail - stainless steel
Interior light - dual color red/white
Molded sink with drain
Portable head with pump-out
Stainless steel storage hooks (2)
250 V8 DTS Black Mercury Verado engine with hydraulic power steering
Automatic bilge pump
Dual battery trays with switch and automatic charging relay for house bank charging
Electric horn
Engine fuel/water separator
Fuel tank (111 gallons) (plastic with barrier coat)
LED navigation lights

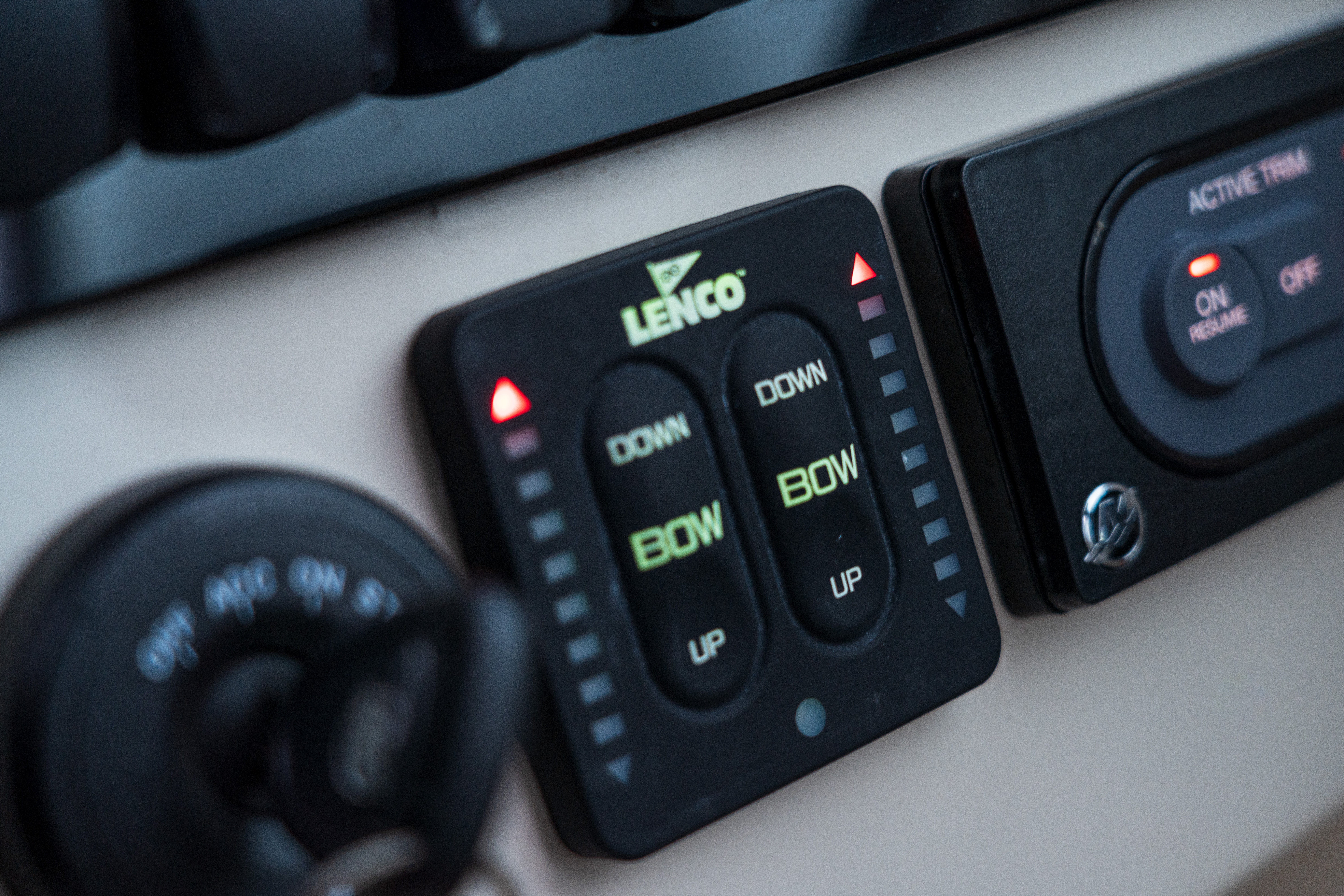

Recessed electric trim tabs with indicators
SmartCraft deluxe gauge package
Stainless steel propeller
Tilt steering
Transducer mount area
Vessel view mobile
Bow seating area with lounge backrests (port and starboard)
Convertible port lounge seat with storage
Custom helm seat with high/low pedestal and slide
Fold-out stern seat with backrest
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
Bow anchor locker with drain
Console storage with stainless steel latch
Head storage compartment
Insulated centerline bow cooler with overboard drain
Insulated in floor fishbox with overboard drain and compression latches (45 gallons) midship
Port and starboard bow storage lockers with overboard drains
Port storage pocket with 4 cup holders and USB outlet
Starboard captain’s pocket storage with USB outlet
Tip out storage in starboard gunnel
Gelcoat Hull Side Colors
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Platinum
Platinum
Gelcoat Full Hull Colors
White
White
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver designator and stripe)
Upholstery Package
Standard Exterior Upholstery Package
Premium Exterior Upholstery Package
Frame Color
White Frame
Black Frame
Hardtop Underside Color
White
White
Platinum
Platinum
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Rails - split bow rail
Rails- white rub rail with stainless insert
Notable Options & Accessories
Gray water system
Bow tow eye
Trailer - aluminum
with disc brakes, dual torsion axles, guide-on stanchions, LED lights, radial tires, spare tire
Battery charging system
Beach boarding ladder
Air compressor
Navigation

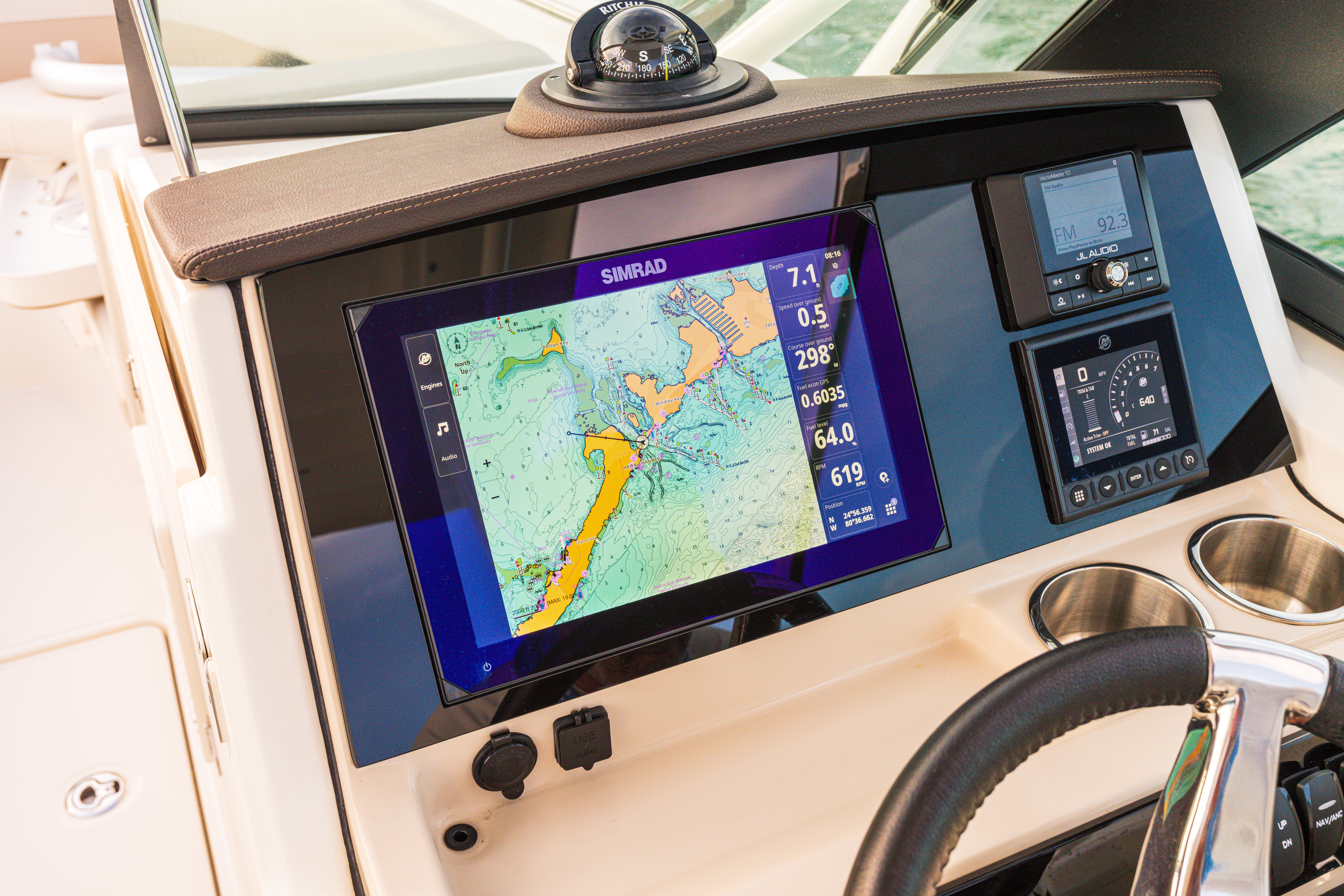

Nav Package, Simrad 9" NSX
Nav Package, Simrad 12" NSX
Electronics
VHF Radio (Simrad)
Standard Features
12-V receptacle
Bow bolsters
Bow cushions with backrests
Bow walkthrough block off panel
Drink holders (4)
Fiberglass lids with latches (3)
Integrated centerline bow cooler (50 quarts)
Recessed storage / cup holder compartment
USB receptable
Welded stainless steel forward grab rails
12V receptacle
Access panel to electronics
Cast stainless steel steering wheel with urethane grip
Compass
Dash visor
Drink holders (2)
Electrical switch panel with circuit breaker protection
Electronics mounting surface
Helm footrests
Storage bucket
Tempered glass windshield
Trash door
Windshield wiper (starboard)
Integrated hardtop
26” cockpit depth
8” stainless steel cleats - bow (2), stern with stainless steel hawse pipes (2), pop-up spring line (2)
Anchor storage
Bow and stern eyes
Cockpit coaming bolsters
Cockpit courtesy lights - dual color blue/white
Covered telescoping swim ladder with stainless steel grab rail
Heavy-duty rub rail
Insulated in floor fishbox with overboard drain and compression latches, midship
Motorwell drains (2)
Rod holders - gunnel mounted stainless steel (4)
Self-bailing cockpit sole
Stainless steel grab rails
Stern stainless steel hawse pipes with drink holders (2)
Transom door with stainless steel latch
Dash visor
Gasketed lockable entry door with dual gaskets and draw down latch.
Grab rail - stainless steel
Interior light - dual color red/white
Molded sink with drain
Portable head with pump-out
Stainless steel storage hooks (2)
250 V8 DTS Black Mercury Verado engine with hydraulic power steering
Automatic bilge pump
Dual battery trays with switch and automatic charging relay for house bank charging
Electric horn
Engine fuel/water separator
Fuel tank (111 gallons) (plastic with barrier coat)
LED navigation lights
Recessed electric trim tabs with indicators
SmartCraft deluxe gauge package
Stainless steel propeller
Tilt steering
Transducer mount area
Vessel view mobile
Bow seating area with lounge backrests (port and starboard)
Convertible port lounge seat with storage
Custom helm seat with high/low pedestal and slide
Fold-out stern seat with backrest
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
Bow anchor locker with drain
Console storage with stainless steel latch
Head storage compartment
Insulated centerline bow cooler with overboard drain
Insulated in floor fishbox with overboard drain and compression latches (45 gallons) midship
Port and starboard bow storage lockers with overboard drains
Port storage pocket with 4 cup holders and USB outlet
Starboard captain’s pocket storage with USB outlet
Tip out storage in starboard gunnel
Options
Gelcoat Hull Side Colors
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Platinum
Platinum
Gelcoat Full Hull Colors
White
White
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver designator and stripe)
Upholstery Package
Standard Exterior Upholstery Package
Premium Exterior Upholstery Package
Frame Color
White Frame
Black Frame
Hardtop Underside Color
White
White
Platinum
Platinum
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Rails - split bow rail
Rails- white rub rail with stainless insert
Notable Options & Accessories
Gray water system
Bow tow eye
Trailer - aluminum
with disc brakes, dual torsion axles, guide-on stanchions, LED lights, radial tires, spare tire
Battery charging system
Beach boarding ladder
Air compressor
Navigation
Nav Package, Simrad 9" NSX
Nav Package, Simrad 12" NSX
Electronics
VHF Radio (Simrad)
Model: 240 Vantage
Hull #: USBWCE1270A323
Engine: Mercury 400 v10 Verado
Horsepower: 400
Gear Ratio: 2.08 :1
Prop: 20P Revolution X
Fuel Capacity: 111 gallons
Notable Options: Beach Ladder, Stainless Steel Anchor, Anchor Windlass, FW Shower, Cockpit Table, Fishing Package, Sunshade, Fiberglass Hardtop,Head w/Pump out, STBD Utility Center, Stainless Steel Windshield Cap, Deluxe Nav PKG
Test Date: 1-March-2023
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 5793 LBS
Fuel: 56 gallons
Water: 0 gallon
Test Gear: 25 lbs
Personnel: 430 lbs
Test Weight: 6,592 lbs
Water Conditions: 75° F
Weather Conditions: 77° F
Model: 240 Vantage
Hull #: USBWCE0007F021
Engine: Mercury 300 V8 AMS
Horsepower: 300
Gear Ratio: 1.85 :1
Prop: 18P Enertia Eco
Fuel Capacity: 111 gallons
Notable Options: Anchor Windlass, Vacu-Flush Head, SS Rub Rail, Water Sports Tower, Fresh Water Shower, Air Compressor System, Stereo, VHF, 12" Electronics
Test Date: 20-June-2020
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 5354 LBS
Fuel: 68 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 360 lbs
Test Weight: 6,157
Water Conditions: 87° F
Weather Conditions: 83° F
Model: 240 Vantage
Hull #: USBWCE0007F021
Engine: Mercury 250 V8 AMS
Horsepower: 250
Gear Ratio: 1.85 :1
Prop: 18P Enertia
Fuel Capacity: 111 gallons
Notable Options: Anchor Windlass, Vacu-Flush Head, SS Rub Rail, Water Sports Tower, Fresh Water Shower, Air Compressor System, Stereo, VHF, 12" Electronics
Test Date: 11-June-2020
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 5,354 LBS
Fuel: 58 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 360 lbs
Test Weight: 6,096 lbs
Water Conditions: 89° F
Weather Conditions: 85° F
Model: 240 Vantage
Hull #: USBWCE1270A323
Engine: Mercury 400 v10 Verado
Horsepower: 400
Gear Ratio: 2.08 :1
Prop: 20P Revolution X
Fuel Capacity: 111 gallons
Notable Options: Beach Ladder, Stainless Steel Anchor, Anchor Windlass, FW Shower, Cockpit Table, Fishing Package, Sunshade, Fiberglass Hardtop,Head w/Pump out, STBD Utility Center, Stainless Steel Windshield Cap, Deluxe Nav PKG
Test Date: 1-March-2023
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 5793 LBS
Fuel: 56 gallons
Water: 0 gallon
Test Gear: 25 lbs
Personnel: 430 lbs
Test Weight: 6,592 lbs
Water Conditions: 75° F
Weather Conditions: 77° F
Model: 240 Vantage
Hull #: USBWCE0007F021
Engine: Mercury 300 V8 AMS
Horsepower: 300
Gear Ratio: 1.85 :1
Prop: 18P Enertia Eco
Fuel Capacity: 111 gallons
Notable Options: Anchor Windlass, Vacu-Flush Head, SS Rub Rail, Water Sports Tower, Fresh Water Shower, Air Compressor System, Stereo, VHF, 12" Electronics
Test Date: 20-June-2020
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 5354 LBS
Fuel: 68 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 360 lbs
Test Weight: 6,157
Water Conditions: 87° F
Weather Conditions: 83° F
Model: 240 Vantage
Hull #: USBWCE0007F021
Engine: Mercury 250 V8 AMS
Horsepower: 250
Gear Ratio: 1.85 :1
Prop: 18P Enertia
Fuel Capacity: 111 gallons
Notable Options: Anchor Windlass, Vacu-Flush Head, SS Rub Rail, Water Sports Tower, Fresh Water Shower, Air Compressor System, Stereo, VHF, 12" Electronics
Test Date: 11-June-2020
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 5,354 LBS
Fuel: 58 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 360 lbs
Test Weight: 6,096 lbs
Water Conditions: 89° F
Weather Conditions: 85° F
