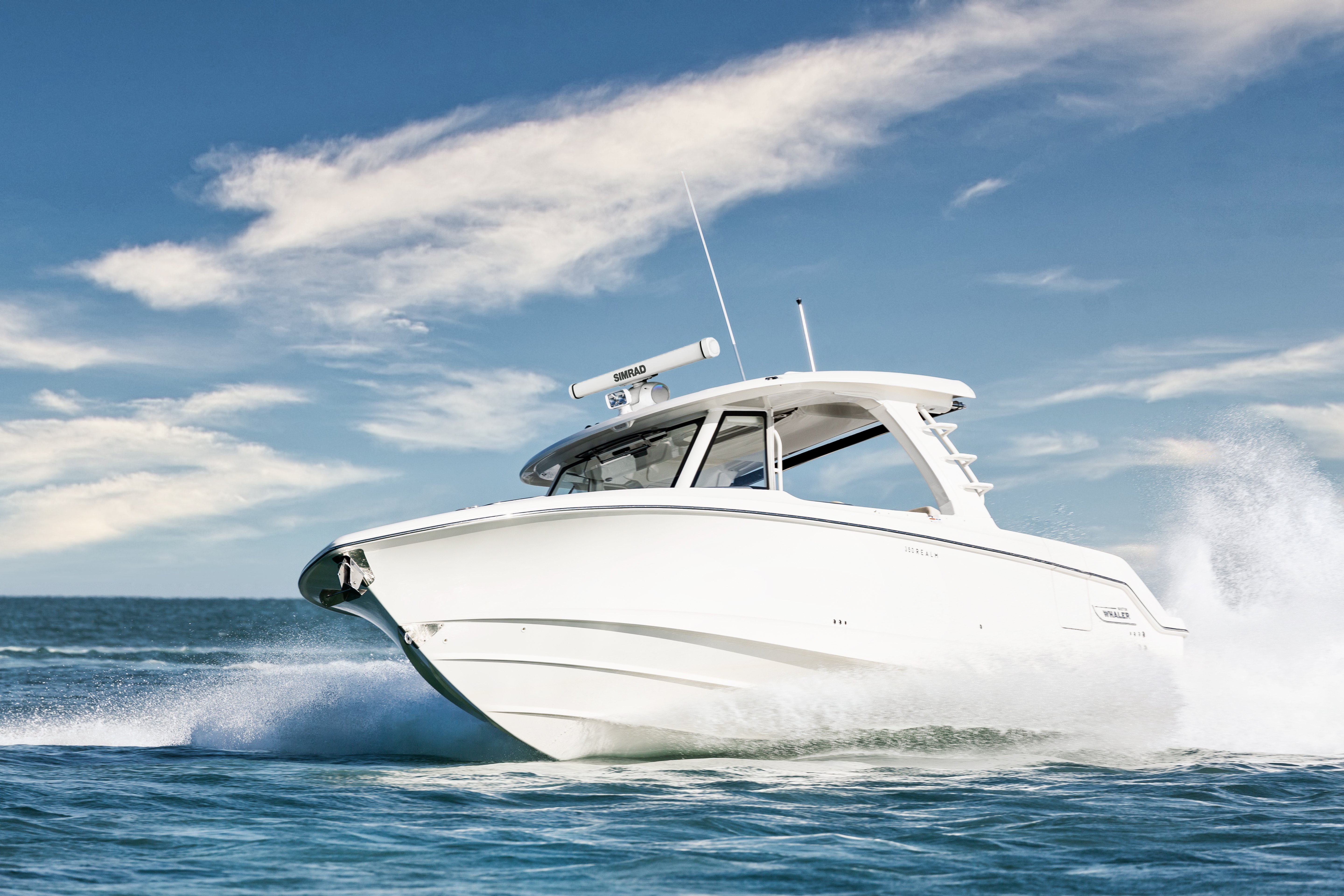

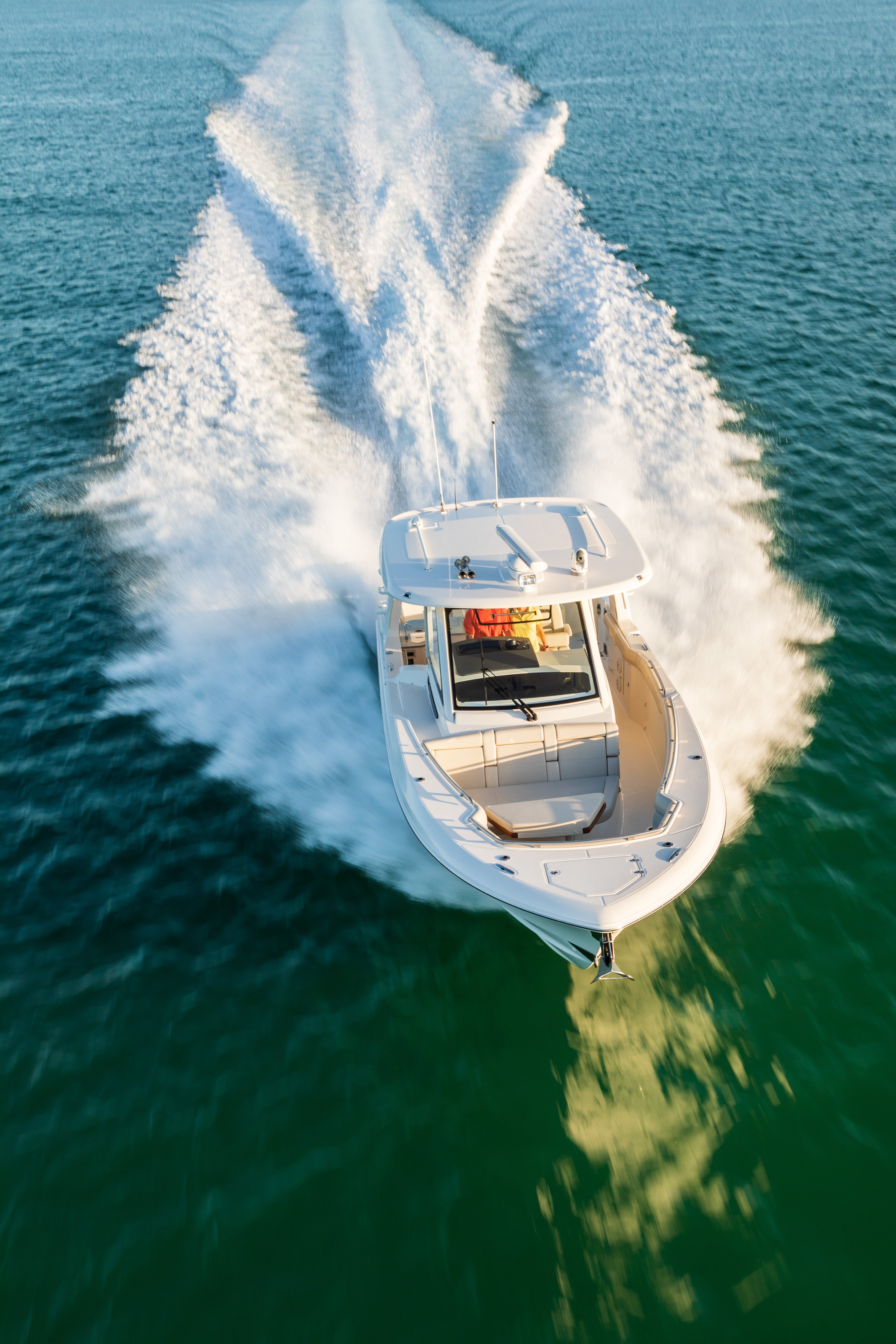

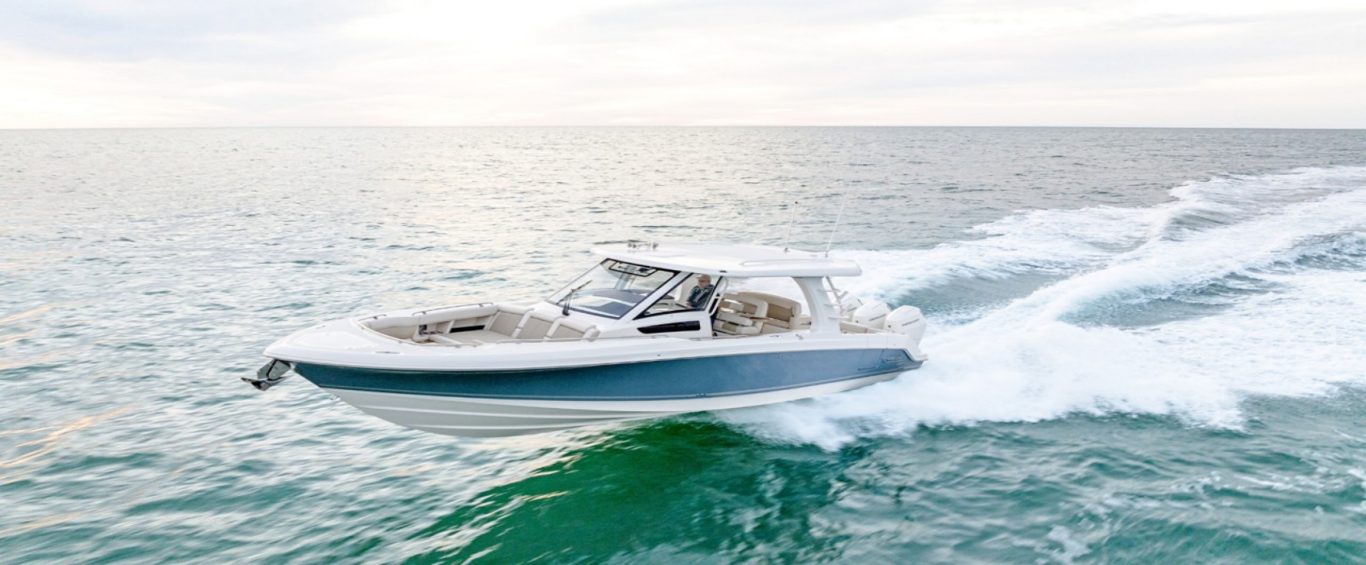

350 Realm
From cruising dockside restaurants to overnighting in the islands to pursuing pelagic big game, the 350 Realm is a sleek and stunning express cabin cruiser that brings all the comfort, performance, and angling features you expect from the legendary Whaler name. A sophisticated layout provides a refined experience inside the luxurious cabin, a commanding helm experience thanks to the intuitive Simrad® interface, and a deck design that seamlessly combines angling prowess and an inviting entertainment experience. With peerless and performance amenities, this 35-ft. express cruiser boat lets you feel at home on the water in a craft suited for any offshore adventure.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.

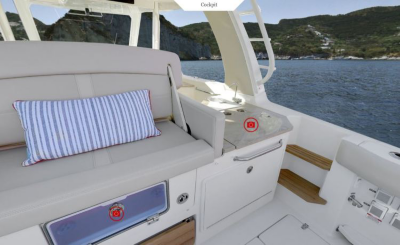

Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
350 REALM FEATURES
Forward console lounge includes fold-down armrests and drink holders, with forward island deck seating opposite.
Portside dive/boarding door with removable stainless-steel ladder allows for easier water interaction.
- Aesthetic enhancements, including interior upholstery & surfaces, exterior upholstery, and an optional exterior teak package
- Versatile cockpit and helm layout with customizable seating & spacious bow area
All Simrad electronics, including new integrations such as: JL Head Units, Stainless Steel Switches, RGB Courtesy Lighting, Auto Dimming, Red/White/Blue Map Light

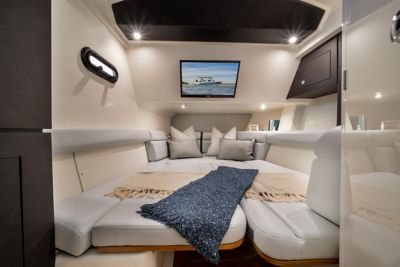

Luxorious inviting cabin includes convertible V-berth/seating area and well-equipped head with shower for comfort on long days and overnights.
Available with WHALER WATCH featuring Mercury's Theft Deterrent System (TDS), a telematics tracking system with GeoFence Immobilization, and remote boat monitoring
Standard Joystick Piloting system for worry free docking, and Skyhook autopilot functionality for effortless station-keeping
- Fishing features include pressurized aft livewell, 2 insulated in-floor fishboxes and optional Gemlux outriggers
- Standard 300-HP V8 Mercury Verado and an optional 400-HP V10 Mercury Verado engine
- Versatile cockpit and helm layout with customizable seating
Capacity
14
Persons Capacity
385 gallons (1,457 L)
Fuel Capacity
4,800 lbs (2,177 kg)
Maximum Weight Capacity
4,000 lbs (1,814 kg)
Swamped Capacity
10 gallons (38 L)
Waste Capacity
45 gallons (170.34 L)
Water Capacity
Dimensions
35’ 6“ (10.82 m)
L.O.A.
10’ 10” (3.30 m)
Beam
9’ 11” (3.02 m)
Bridge Clearance (with top and radar)
8’ 10” (2.7m)
Bridge Clearance (with top)
24.5” (0.62m)
Draft
30" (0.8m)
Transom Height
Engines
1,200 HP (895 kW)
Maximum Horsepower
2,100 lbs (953 kg)
Maximum Engine Weight
750 HP (559 kW)
Minimum Horsepower
Weight
13,600 lbs (6,169 kg)
Weight (dry, no engine)
18,830 lbs (8,559 kg)
Weight (w/engines, fuel, water and batteries)
14
Persons Capacity
385 gallons (1,457 L)
Fuel Capacity
4,800 lbs (2,177 kg)
Maximum Weight Capacity
4,000 lbs (1,814 kg)
Swamped Capacity
10 gallons (38 L)
Waste Capacity
45 gallons (170.34 L)
Water Capacity
35’ 6“ (10.82 m)
L.O.A.
10’ 10” (3.30 m)
Beam
9’ 11” (3.02 m)
Bridge Clearance (with top and radar)
8’ 10” (2.7m)
Bridge Clearance (with top)
24.5” (0.62m)
Draft
30" (0.8m)
Transom Height
1,200 HP (895 kW)
Maximum Horsepower
2,100 lbs (953 kg)
Maximum Engine Weight
750 HP (559 kW)
Minimum Horsepower
13,600 lbs (6,169 kg)
Weight (dry, no engine)
18,830 lbs (8,559 kg)
Weight (w/engines, fuel, water and batteries)
Standard features & Options
120V receptacle (starboard side)
12V receptacle
28” flat screen HDTV (with Apple TV, integrated with included iPad)
Carbon monoxide detector
Easy to clean interior materials
Hardwood cabin sole
LED blue/white diffused courtesy lighting with dimmer switch
LED overhead lights with dimmer switches (6)
Lockable acrylic cabin door
Opening portholes with screens (2)
Opposing seating that converts to berth
Portside window
Skylight
USB power receptacle - dual inputs (port and starboard)
10” stainless steel cleats - stern cockpit with gunnel board hawse pipe (2), anchor locker (1)
10” stainless steel pull-up cleats - bow (2), mid-ship spring line (2), crosstie cleats at transom (2)
28” interior freeboard
Acrylic transom door with stainless steel latch
anchor (35 lbs) and polished stainless steel bow roller
Bow eye
Drink holders (stainless steel) - bow (8), helm (2), prep station (3), forward console lounge (3), cockpit gunnel boards (1)
Full coaming bolsters
Integral swim platform with recessed telescoping dive ladder and grab rail
Lighting - machinery space LED lighting
Lighting - blue and white LED courtesy lighting (cockpit)
Molded fiberglass port side dive/boarding door with removable stainless steel dive ladder
Pressurized livewell (15 gallons) in aft port corner with clear lid and blue interior with red LED lights
Rails - bow rail (low profile interior)(welded stainless steel)
Rails - hand rails (stainless steel)
Rails - heavy duty white rub rail with stainless steel insert
Rod holders (gunnel mounted) - starboard cockpit (2), port cockpit (2)
Rod holders (transom)(3)
Self-bailing cockpit sole
Thru hull anchor roller davit (stainless steel)
Windlass - 400’ of rode and chain with handheld remote control, stainless steel swivel, stainless steel anchor (35 lbs) and polished stainless steel bow roller

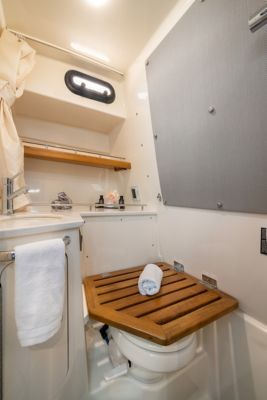

120V outlet
500 GPH shower sump
Accent wall
Flooring - solid surface tile
Full length mirror
Hooks - stainless steel fold down
LED overhead lighting
Pullout showerhead with mixer valve and vertical adjustment
Seat - hinged solid teak flip up seat over toilet
Shower curtain
Sink - molded fiberglass sink with hot and cold faucet
Solid surface vanity countertop
Storage teak shelf
Toilet paper holder
VacuFlush™ toilet, holding tank, dockside pump-out, overboard discharge and tank level indicator
Vanity grab rail
Vanity storage
Canvas enclosure or lifejacket storage (white or black depending on frame color selection)
Hardtop frame - custom powder-coated aluminum frame integrated into the deck providing unobstructed walkways (white or black depending on frame color selection)
Lighting - blue/white LED overhead courtesy lighting (6)
Lighting - LED navigation lights recessed in the hardtop
Lighting - red/white LED courtesy map light (1)
Lighting (flood light) - recessed LED lighting for bow area (1)
Lighting (flood lights) - recessed LED lighting for cockpit area (2)
Lockable electronics box with 12V receptacle
Outrigger ready
Tempered glass windshield with power actuated vent
Windshield defogger system (integrated into the hardtop)
Windshield wiper with intermittent control and wash system
Ladder access to hardtop (white or black depending on frame color selection)
12-V receptacle (1) / USB (1)
Electronics mounting surface with space for dual displays
Center helm layout
Compass
Dash visor with custom stitched cover and recessed storage tray with USB and 12-V charging receptacles
Drink holders (3)
Electrical system switch panel with illuminated text
Ignition switches - remote key switches in main DC panel cabinet with pushbutton start/stop at helm
Lockable acrylic sliding cabin entry door
Mercury® DTS dual binnacle controls featuring Shadow Mode for center engine with integrated engine trim controls
Nav Package, Sirmad 16" NSO (includes: Simrad NSO 16” MFD (2) (GPS, Chart plotter, Fishfinder), (CHIRP, SideScan, DownScan), Integrated Mercury VesselVIew Link, Simrad RS40 VHF Radio with AIS and HS40 wireless handset, GS25 GPS Antenna 15 N2K with Heading Sensor, Simrad S5100 1kw Dual channel CHIRP Sounder Module, Airmar 1000 watt recessed thru hull Dual channel CHIRP transducer (B275LH-W), StructureScan 3D transducer included)
Molded console footrests and fold-down helm standing platform with maintenance free, anti-fatigue synthetic surface providing improved visibility and comfort for the captain
Steering wheel (cast stainless steel with urethane grip, speed knob and tilt)
Stereo System (JL Audio integration into Simrad Navigation Package) HELM - JL Audio MM105-HR stereo with dash mounted remote volume/mute knob, AM/FM/HD Radio, USB audio, and Sirius XMTM ready, Iphone/Android compatible via integrated Bluetooth 5.0, JL Audio waterproof speakers (4), 10 Subwoofer (1), and 200W & 1000W Amplifiers CABIN - Stereo JL Audio MM50 AM/FM, MP3/USB inputs, and, Bluetooth compatible source unit, JL Audio speakers 6.5 (2) BOW - JL Audio MM40 stereo remote and JL Audio waterproof speakers 7.7 (2)
300 V8 DTS Black Triple Mercury Verado with Joystick Piloting. Outboard docking system with joystick, electronic steering, and electronic remote control (ERC). (Includes fuel/water separators) (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
385-gallon aluminum fuel tank
Advanced battery management system (electric switches with pushbutton paralleling)
Air conditioning (cabin)(12,000 BTU, reverse cycle)
Air conditioning (cockpit)(18,000 BTU, reverse cycle)
Battery charger (50 AMP at 12V multi-stage charger)
Battery trays
Bilge pump - automatic (1100 GPH fwd, 2000 GPH aft)
Bilge pump - high water pump with alarm (2000 GPH aft)
Bonding system for underwater through hull fittings
Cast bronze thru hulls, seacocks and sea strainers (below waterline)
Cast stainless steel thru hulls (above waterline)
Electric trim tabs with indicator (Dynamic Running Surface, dual ram)
Electric trumpet horn
Engine fuel / water separators
Freshwater dive door shower with hot and cold mixer located in prep station
Freshwater dockside hookup and tank level indicator integrated into Digital Monitoring System for hot and cold pressurized water system with 45-gallon tank
Freshwater manifold plumbing system with individual valve per circuit
Freshwater stainless steel washdown faucet located in anchor locker and cockpit
Freshwater transom shower with hot and cold mixer
Generator (low CO gas (7.5 kW) 120V 60 Hz with fire suppression system, automatic with manual override)
Livewell - pressurized (15-gallon) with clear top window and blue interior (with red LED light) in aft port corner
Machinery space lighting (4)
Propellers - stainless steel
Raw-water washdown with stainless steel faucet (located in cockpit)
Shore power inlets (dual 30 amp, isolation transformers and 50ft shore power cords included)
Transducer mount area and pocket for flush mounting B260/B275 transducer
Water heater (6 gallons)
120-V GFI outlet
Drink holders (3)

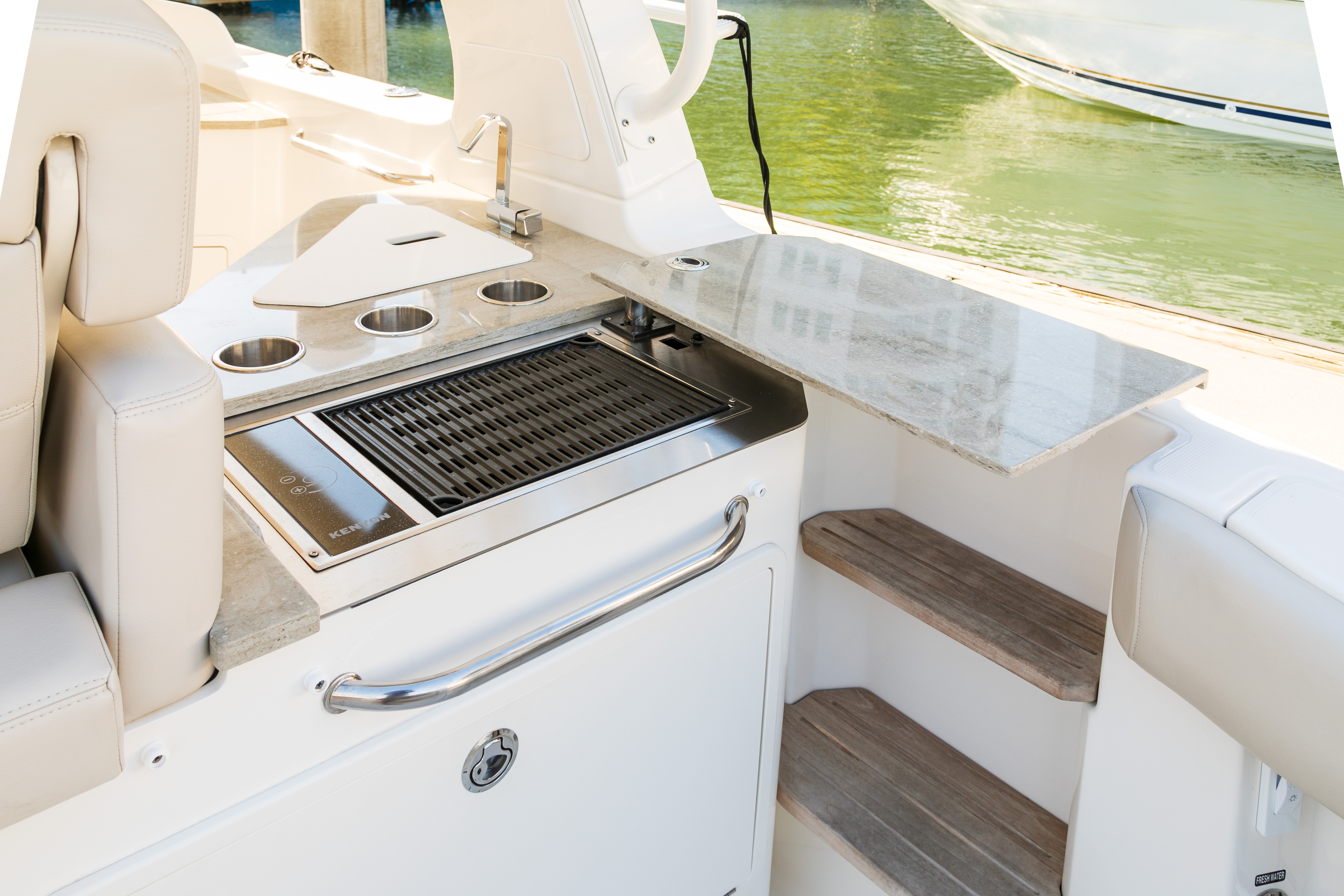

Electric grill with solid surface cover with custom pop-up rotation providing a prep counter while grilling
Freshwater sink with hot and cold
Grab rail - stainless steel

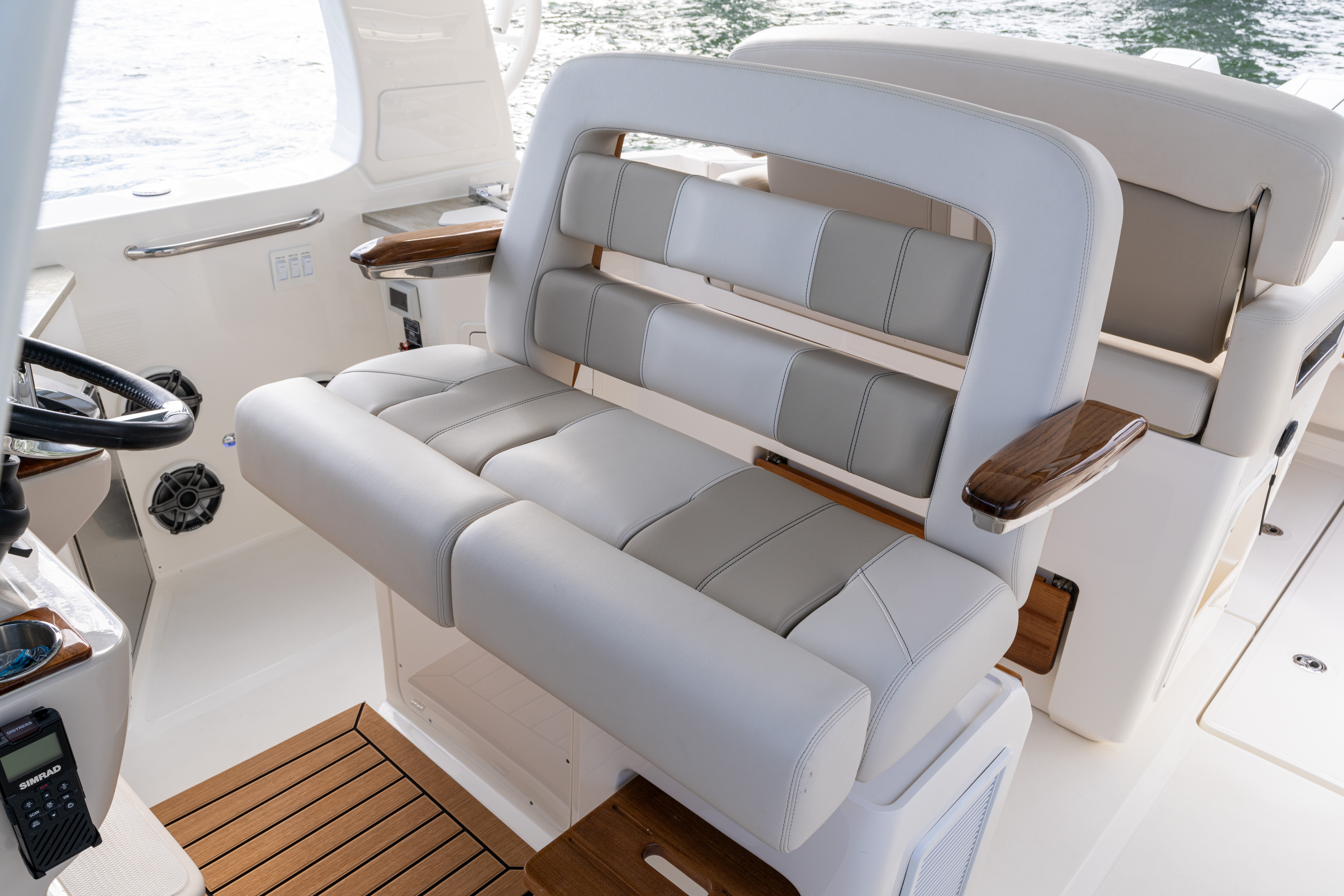

Helm deck second row 2-person seat with conversion seatback transforming to an aft facing seat with flip down teak foot rests
Insulated 230qt built-in cooler/storage under second row seating with dual access
Pullout teak footrest on the forward and aft sides of the second-row seating

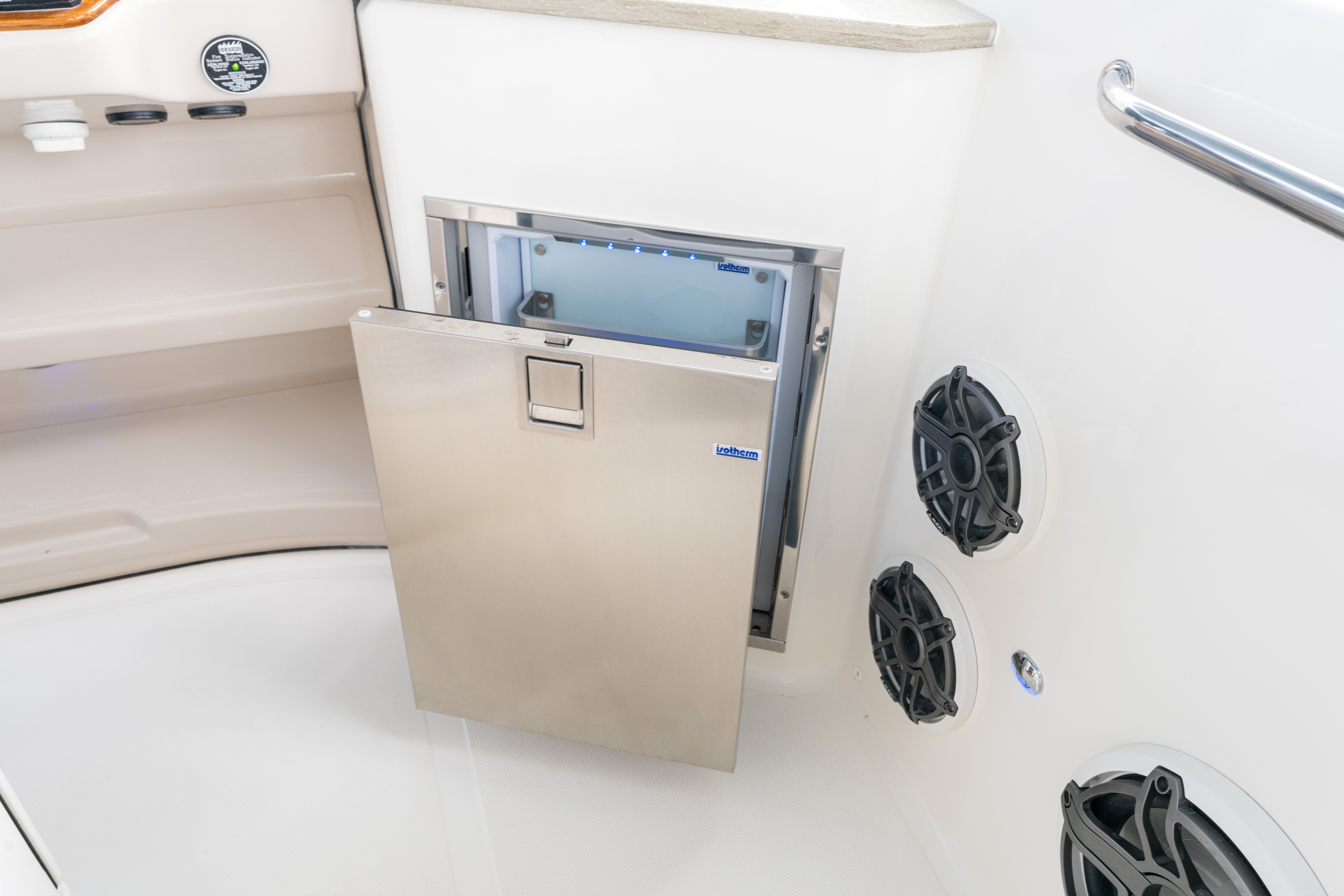

Refrigerator - stainless steel (12V/120V)(2.3 cubic ft.)

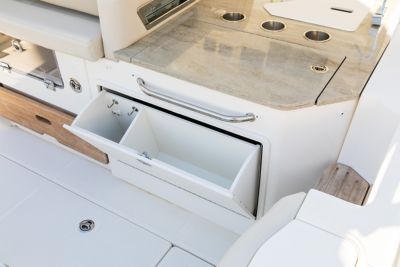

Storage drawers
Bow lounge with backrest and fold-down armrests with integrated drink holders (3)
Bow wrap-around seating with drink holders (4), full height forward bolster and removable cushions
Deluxe swivel 2-person helm seat with armrests (adjustable electric slide and 180-degree rotation creating an apposed seating conversation and dining area)

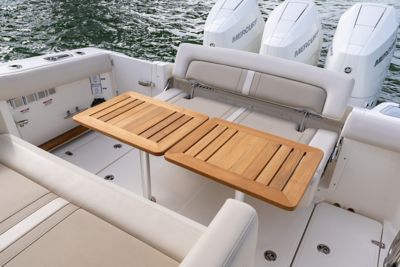

Foldout stern bench seat
Helm deck second row with 2-person seat with a conversation seatback transforming to an aft facing seat with flip-down teak foot rests
All Hardware 316-L Stainless Steel
All Rails Welded 316-L Stainless Steel
Bow anchor locker with drains and LED lighting
Cabin - starboard side storage cabinet
Canvas or lifejacket storage cabinet
Drawer storage in helm deck prep station
Forward coaming pockets
Head storage compartment (under vanity)
Insulated 230qt built-in cooler/storage under second row seating
Insulated 26qt cooler tub in starboard helm deck counter
Insulated in-floor fishboxes with pump-out - aft (2)
Lockable electronics box in hardtop
Storage cabinet under starboard helm deck counter
Storage under bow seat with LED lighting
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Red graphics
Red graphics
Chrome graphics
Chrome graphics
Upholstery Package
Shore (Tan) (Standard)
Shore (Tan) (Standard)
All exterior upholstery (based on option selection), console dash tan gel coat
Tidal (Gray)
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Hardtop Underside Color
Abaco Blue
Abaco Blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue
Triple Engines
300 V8 Black Triple Mercury Verados with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality.(Raymarine or other standalone optional autopilot not permitted with Joystick Piloting) (includes fuel/water separators)
300 V8 White Triple Mercury Verados with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality.(Raymarine or other standalone optional autopilot not permitted with Joystick Piloting) (includes fuel/water separators)
400 V10 Black Triple Mercury Verados w/JPO
400 V10 Black Triple Mercury Verados w/JPO
400 V10 White Triple Mercury Verados w/JPO
400 V10 White Triple Mercury Verados w/JPO
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Entertaining Features
Table - bow table w/sun lounge
(teak table that is electrically raised and lowered) with filler cushion and canvas cover
Refrigerated bucket cooler
(turns prep station insulated 260 qt cooler under seat into a refrigerator)
Table - cockpit and helm
cockpit and helm deck tables (2) with dedicated storage on underside of mechanical space hatch (teak table)
Fishing Features
Outriggers - premium outriggers
(Gemlux) (stainless steel) (hardtop mounted)
Livewell
(32 gallon pressurized livewell with clear lid, blue interior with 2 red LED lights)(deletes electric grill and refrigerator)
Notable Options & Accessories
Teak detail package exterior
Single bottle chiller
Engine flush
(automatic sequencing between engines with separate dockside freshwater hookup on transom)
Hardtop roof rack
(includes radar riser for paddle board clearance if Nav Package is selected) (white or black depending on frame color selection)
Bow Thruster
Bow Thruster
Fender Hangers - stainless steel (6)
stainless steel fender hangers (6)
Anchor windlass chain (300 feet)
Anchor windlass chain (300 feet)
Bow tow eye
heavy duty polished stainless steel
Spotlight
Spotlight
Trailer - aluminum
Seakeeper 3 Gyro Stabilizer
(deletes prep station refrigerator and adds stainless steel helm refrigerator)(replaces cooler tub and drawer storage)(not compatible with prep station livewell) includes factory installed GR31 AGM batteries
Lighting - underwater LED
(blue) - transom mounted (4), hull side in trim tab pocket (2)
Electronics
M364C Thermal Night Vision w hardtop mount
M332 Thermal Night Vision w hardtop mount
CMAP Chart Card - Asia
(Only compatible with NSX Displays)
Vessel View Mobile
Simrad 48" Radar Open Array Bird+
Simrad 48" Radar Open Array Bird+ (Not compatable with Hardtop Storage Rack & Thermal Night Vision Option) Simrad HALO 30004 130W Pulse Compression Radar with 48" Open Array Antenna
Simrad 36" Radar Open Array Bird+
Simrad 36" Radar Open Array Bird+ (Compatable with Hardtop Storage Rack & Thermal Night Vision Option) Simrad HALO 30004 130W Pulse Compression Radar with 36" Open Array Antenna
Satellite weather and radio
Satellite weather and radio
Cockpit rear view camera
Auto ID System NSPL - 500 Transceiver
Theft Deterrent w/ First mate / Conn System Triple
Theft Deterrent w/ First mate / Conn System Triple
First mate safety and security system
First mate safety and security system
First mate safety and security system FOB kit
First mate safety and security system FOB kit
Satellite radio
Sirius XM satellite receiver with antenna installed (does not include service)
CMAP Chart Card - S. America/Carib
(Only compatible with NSX Displays)
CMAP Chart Card - Cent/West Europe
(Only compatible with NSX Displays)
CMAP Chart Card - Nor/Cent Europe
(Only compatible with NSX Displays)
CMAP Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Chart Card - Africa/Arabic Sea
(Only compatible with NSX Displays)
CMAP Chart Card - Au/Nz
(Only compatible with NSX Displays)
Sunshades
Sunshade - at cockpit
(black canvas)(stainless steel telescoping, electronically retracts and deploys)
Canvas
Canvas cover package
includes: black sunbrella, cockpit seat back cover, console cover, forward cushion covers, helm seat cover, prep station/second row seat cover
Canvas enclosure
(Rigid Makrolon with White Stamoid) (white or black depending on color selection) - includes: hardtop aft curtain (full beam enclosure), hardtop wing curtains with two side panels (per side)
Full canvas mooring cover
from hardtop to fore and aft deck coverage (not compatible with bow rail)
Black Canvas
Tan Canvas
Standard Features
120V receptacle (starboard side)
12V receptacle
28” flat screen HDTV (with Apple TV, integrated with included iPad)
Carbon monoxide detector
Easy to clean interior materials
Hardwood cabin sole
LED blue/white diffused courtesy lighting with dimmer switch
LED overhead lights with dimmer switches (6)
Lockable acrylic cabin door
Opening portholes with screens (2)
Opposing seating that converts to berth
Portside window
Skylight
USB power receptacle - dual inputs (port and starboard)
10” stainless steel cleats - stern cockpit with gunnel board hawse pipe (2), anchor locker (1)
10” stainless steel pull-up cleats - bow (2), mid-ship spring line (2), crosstie cleats at transom (2)
28” interior freeboard
Acrylic transom door with stainless steel latch
anchor (35 lbs) and polished stainless steel bow roller
Bow eye
Drink holders (stainless steel) - bow (8), helm (2), prep station (3), forward console lounge (3), cockpit gunnel boards (1)
Full coaming bolsters
Integral swim platform with recessed telescoping dive ladder and grab rail
Lighting - machinery space LED lighting
Lighting - blue and white LED courtesy lighting (cockpit)
Molded fiberglass port side dive/boarding door with removable stainless steel dive ladder
Pressurized livewell (15 gallons) in aft port corner with clear lid and blue interior with red LED lights
Rails - bow rail (low profile interior)(welded stainless steel)
Rails - hand rails (stainless steel)
Rails - heavy duty white rub rail with stainless steel insert
Rod holders (gunnel mounted) - starboard cockpit (2), port cockpit (2)
Rod holders (transom)(3)
Self-bailing cockpit sole
Thru hull anchor roller davit (stainless steel)
Windlass - 400’ of rode and chain with handheld remote control, stainless steel swivel, stainless steel anchor (35 lbs) and polished stainless steel bow roller
120V outlet
500 GPH shower sump
Accent wall
Flooring - solid surface tile
Full length mirror
Hooks - stainless steel fold down
LED overhead lighting
Pullout showerhead with mixer valve and vertical adjustment
Seat - hinged solid teak flip up seat over toilet
Shower curtain
Sink - molded fiberglass sink with hot and cold faucet
Solid surface vanity countertop
Storage teak shelf
Toilet paper holder
VacuFlush™ toilet, holding tank, dockside pump-out, overboard discharge and tank level indicator
Vanity grab rail
Vanity storage
Canvas enclosure or lifejacket storage (white or black depending on frame color selection)
Hardtop frame - custom powder-coated aluminum frame integrated into the deck providing unobstructed walkways (white or black depending on frame color selection)
Lighting - blue/white LED overhead courtesy lighting (6)
Lighting - LED navigation lights recessed in the hardtop
Lighting - red/white LED courtesy map light (1)
Lighting (flood light) - recessed LED lighting for bow area (1)
Lighting (flood lights) - recessed LED lighting for cockpit area (2)
Lockable electronics box with 12V receptacle
Outrigger ready
Tempered glass windshield with power actuated vent
Windshield defogger system (integrated into the hardtop)
Windshield wiper with intermittent control and wash system
Ladder access to hardtop (white or black depending on frame color selection)
12-V receptacle (1) / USB (1)
Electronics mounting surface with space for dual displays
Center helm layout
Compass
Dash visor with custom stitched cover and recessed storage tray with USB and 12-V charging receptacles
Drink holders (3)
Electrical system switch panel with illuminated text
Ignition switches - remote key switches in main DC panel cabinet with pushbutton start/stop at helm
Lockable acrylic sliding cabin entry door
Mercury® DTS dual binnacle controls featuring Shadow Mode for center engine with integrated engine trim controls
Nav Package, Sirmad 16" NSO (includes: Simrad NSO 16” MFD (2) (GPS, Chart plotter, Fishfinder), (CHIRP, SideScan, DownScan), Integrated Mercury VesselVIew Link, Simrad RS40 VHF Radio with AIS and HS40 wireless handset, GS25 GPS Antenna 15 N2K with Heading Sensor, Simrad S5100 1kw Dual channel CHIRP Sounder Module, Airmar 1000 watt recessed thru hull Dual channel CHIRP transducer (B275LH-W), StructureScan 3D transducer included)
Molded console footrests and fold-down helm standing platform with maintenance free, anti-fatigue synthetic surface providing improved visibility and comfort for the captain
Steering wheel (cast stainless steel with urethane grip, speed knob and tilt)
Stereo System (JL Audio integration into Simrad Navigation Package) HELM - JL Audio MM105-HR stereo with dash mounted remote volume/mute knob, AM/FM/HD Radio, USB audio, and Sirius XMTM ready, Iphone/Android compatible via integrated Bluetooth 5.0, JL Audio waterproof speakers (4), 10 Subwoofer (1), and 200W & 1000W Amplifiers CABIN - Stereo JL Audio MM50 AM/FM, MP3/USB inputs, and, Bluetooth compatible source unit, JL Audio speakers 6.5 (2) BOW - JL Audio MM40 stereo remote and JL Audio waterproof speakers 7.7 (2)
300 V8 DTS Black Triple Mercury Verado with Joystick Piloting. Outboard docking system with joystick, electronic steering, and electronic remote control (ERC). (Includes fuel/water separators) (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
385-gallon aluminum fuel tank
Advanced battery management system (electric switches with pushbutton paralleling)
Air conditioning (cabin)(12,000 BTU, reverse cycle)
Air conditioning (cockpit)(18,000 BTU, reverse cycle)
Battery charger (50 AMP at 12V multi-stage charger)
Battery trays
Bilge pump - automatic (1100 GPH fwd, 2000 GPH aft)
Bilge pump - high water pump with alarm (2000 GPH aft)
Bonding system for underwater through hull fittings
Cast bronze thru hulls, seacocks and sea strainers (below waterline)
Cast stainless steel thru hulls (above waterline)
Electric trim tabs with indicator (Dynamic Running Surface, dual ram)
Electric trumpet horn
Engine fuel / water separators
Freshwater dive door shower with hot and cold mixer located in prep station
Freshwater dockside hookup and tank level indicator integrated into Digital Monitoring System for hot and cold pressurized water system with 45-gallon tank
Freshwater manifold plumbing system with individual valve per circuit
Freshwater stainless steel washdown faucet located in anchor locker and cockpit
Freshwater transom shower with hot and cold mixer
Generator (low CO gas (7.5 kW) 120V 60 Hz with fire suppression system, automatic with manual override)
Livewell - pressurized (15-gallon) with clear top window and blue interior (with red LED light) in aft port corner
Machinery space lighting (4)
Propellers - stainless steel
Raw-water washdown with stainless steel faucet (located in cockpit)
Shore power inlets (dual 30 amp, isolation transformers and 50ft shore power cords included)
Transducer mount area and pocket for flush mounting B260/B275 transducer
Water heater (6 gallons)
120-V GFI outlet
Drink holders (3)
Electric grill with solid surface cover with custom pop-up rotation providing a prep counter while grilling
Freshwater sink with hot and cold
Grab rail - stainless steel
Helm deck second row 2-person seat with conversion seatback transforming to an aft facing seat with flip down teak foot rests
Insulated 230qt built-in cooler/storage under second row seating with dual access
Pullout teak footrest on the forward and aft sides of the second-row seating
Refrigerator - stainless steel (12V/120V)(2.3 cubic ft.)
Storage drawers
Bow lounge with backrest and fold-down armrests with integrated drink holders (3)
Bow wrap-around seating with drink holders (4), full height forward bolster and removable cushions
Deluxe swivel 2-person helm seat with armrests (adjustable electric slide and 180-degree rotation creating an apposed seating conversation and dining area)
Foldout stern bench seat
Helm deck second row with 2-person seat with a conversation seatback transforming to an aft facing seat with flip-down teak foot rests
All Hardware 316-L Stainless Steel
All Rails Welded 316-L Stainless Steel
Bow anchor locker with drains and LED lighting
Cabin - starboard side storage cabinet
Canvas or lifejacket storage cabinet
Drawer storage in helm deck prep station
Forward coaming pockets
Head storage compartment (under vanity)
Insulated 230qt built-in cooler/storage under second row seating
Insulated 26qt cooler tub in starboard helm deck counter
Insulated in-floor fishboxes with pump-out - aft (2)
Lockable electronics box in hardtop
Storage cabinet under starboard helm deck counter
Storage under bow seat with LED lighting
Options
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Red graphics
Red graphics
Chrome graphics
Chrome graphics
Upholstery Package
Shore (Tan) (Standard)
Shore (Tan) (Standard)
All exterior upholstery (based on option selection), console dash tan gel coat
Tidal (Gray)
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Hardtop Underside Color
Abaco Blue
Abaco Blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue
Triple Engines
300 V8 Black Triple Mercury Verados with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality.(Raymarine or other standalone optional autopilot not permitted with Joystick Piloting) (includes fuel/water separators)
300 V8 White Triple Mercury Verados with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality.(Raymarine or other standalone optional autopilot not permitted with Joystick Piloting) (includes fuel/water separators)
400 V10 Black Triple Mercury Verados w/JPO
400 V10 Black Triple Mercury Verados w/JPO
400 V10 White Triple Mercury Verados w/JPO
400 V10 White Triple Mercury Verados w/JPO
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Entertaining Features
Table - bow table w/sun lounge
(teak table that is electrically raised and lowered) with filler cushion and canvas cover
Refrigerated bucket cooler
(turns prep station insulated 260 qt cooler under seat into a refrigerator)
Table - cockpit and helm
cockpit and helm deck tables (2) with dedicated storage on underside of mechanical space hatch (teak table)
Fishing Features
Outriggers - premium outriggers
(Gemlux) (stainless steel) (hardtop mounted)
Livewell
(32 gallon pressurized livewell with clear lid, blue interior with 2 red LED lights)(deletes electric grill and refrigerator)
Notable Options & Accessories
Teak detail package exterior
Single bottle chiller
Engine flush
(automatic sequencing between engines with separate dockside freshwater hookup on transom)
Hardtop roof rack
(includes radar riser for paddle board clearance if Nav Package is selected) (white or black depending on frame color selection)
Bow Thruster
Bow Thruster
Fender Hangers - stainless steel (6)
stainless steel fender hangers (6)
Anchor windlass chain (300 feet)
Anchor windlass chain (300 feet)
Bow tow eye
heavy duty polished stainless steel
Spotlight
Spotlight
Trailer - aluminum
Seakeeper 3 Gyro Stabilizer
(deletes prep station refrigerator and adds stainless steel helm refrigerator)(replaces cooler tub and drawer storage)(not compatible with prep station livewell) includes factory installed GR31 AGM batteries
Lighting - underwater LED
(blue) - transom mounted (4), hull side in trim tab pocket (2)
Electronics
M364C Thermal Night Vision w hardtop mount
M332 Thermal Night Vision w hardtop mount
CMAP Chart Card - Asia
(Only compatible with NSX Displays)
Vessel View Mobile
Simrad 48" Radar Open Array Bird+
Simrad 48" Radar Open Array Bird+ (Not compatable with Hardtop Storage Rack & Thermal Night Vision Option) Simrad HALO 30004 130W Pulse Compression Radar with 48" Open Array Antenna
Simrad 36" Radar Open Array Bird+
Simrad 36" Radar Open Array Bird+ (Compatable with Hardtop Storage Rack & Thermal Night Vision Option) Simrad HALO 30004 130W Pulse Compression Radar with 36" Open Array Antenna
Satellite weather and radio
Satellite weather and radio
Cockpit rear view camera
Auto ID System NSPL - 500 Transceiver
Theft Deterrent w/ First mate / Conn System Triple
Theft Deterrent w/ First mate / Conn System Triple
First mate safety and security system
First mate safety and security system
First mate safety and security system FOB kit
First mate safety and security system FOB kit
Satellite radio
Sirius XM satellite receiver with antenna installed (does not include service)
CMAP Chart Card - S. America/Carib
(Only compatible with NSX Displays)
CMAP Chart Card - Cent/West Europe
(Only compatible with NSX Displays)
CMAP Chart Card - Nor/Cent Europe
(Only compatible with NSX Displays)
CMAP Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Chart Card - Africa/Arabic Sea
(Only compatible with NSX Displays)
CMAP Chart Card - Au/Nz
(Only compatible with NSX Displays)
Sunshades
Sunshade - at cockpit
(black canvas)(stainless steel telescoping, electronically retracts and deploys)
Canvas
Canvas cover package
includes: black sunbrella, cockpit seat back cover, console cover, forward cushion covers, helm seat cover, prep station/second row seat cover
Canvas enclosure
(Rigid Makrolon with White Stamoid) (white or black depending on color selection) - includes: hardtop aft curtain (full beam enclosure), hardtop wing curtains with two side panels (per side)
Full canvas mooring cover
from hardtop to fore and aft deck coverage (not compatible with bow rail)
Black Canvas
Tan Canvas
Model: 350 Realm
Hull #: USBWCE0917J819
Engine: Triple Mercury 300 V8 AMS (Joystick Piloting)
Horsepower: 900
Gear Ratio: 1.85 : 1
Prop: 16” x 20” Enertia Eco
Fuel Capacity: 385 gallons
Notable Options: Joystick Piloting, Active Trim
Test Date: 07-Nov-18
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 185 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 410 lbs
Test Weight: N/A
Water Conditions: 80° F
Weather Conditions: 84° F
Model: 350 Realm
Hull #: USBWCE0903J223
Engine: Triple Mercury 400 Verado
Horsepower: 1200
Gear Ratio: 2.08:1
Prop: 22P Rev X
Fuel Capacity: 385 gallons
Notable Options: Gyro, Premium Audio, Retractable Sunshade, Chirp Sonar, Simrad Radar, Bow Table, Aft Cockpit Table, Underwater Lighting
Test Date: 10-April-2023
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 188 gallons
Water: 32 gallons
Test Gear: 25 lbs
Personnel: 365 lbs
Test Weight: N/A
Water Conditions: 76 degrees F
Weather Conditions: 69 degrees F

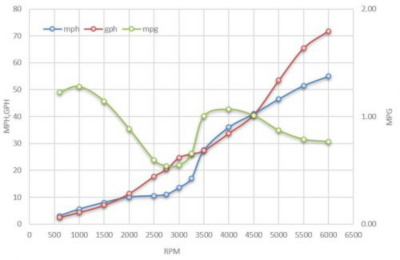

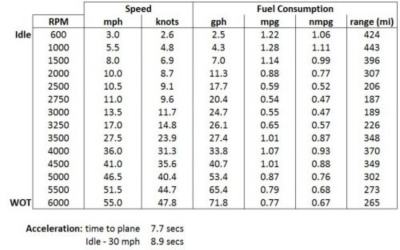

Model: 350 Realm
Hull #: USBWCE0917J819
Engine: Triple Mercury 300 V8 AMS (Joystick Piloting)
Horsepower: 900
Gear Ratio: 1.85 : 1
Prop: 16” x 20” Enertia Eco
Fuel Capacity: 385 gallons
Notable Options: Joystick Piloting, Active Trim
Test Date: 07-Nov-18
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 185 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 410 lbs
Test Weight: N/A
Water Conditions: 80° F
Weather Conditions: 84° F

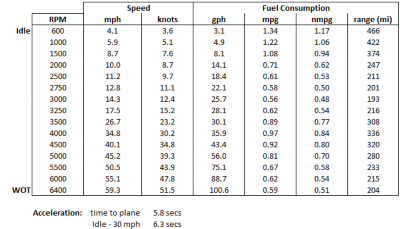

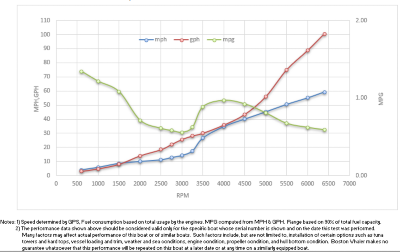

Model: 350 Realm
Hull #: USBWCE0903J223
Engine: Triple Mercury 400 Verado
Horsepower: 1200
Gear Ratio: 2.08:1
Prop: 22P Rev X
Fuel Capacity: 385 gallons
Notable Options: Gyro, Premium Audio, Retractable Sunshade, Chirp Sonar, Simrad Radar, Bow Table, Aft Cockpit Table, Underwater Lighting
Test Date: 10-April-2023
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 188 gallons
Water: 32 gallons
Test Gear: 25 lbs
Personnel: 365 lbs
Test Weight: N/A
Water Conditions: 76 degrees F
Weather Conditions: 69 degrees F
