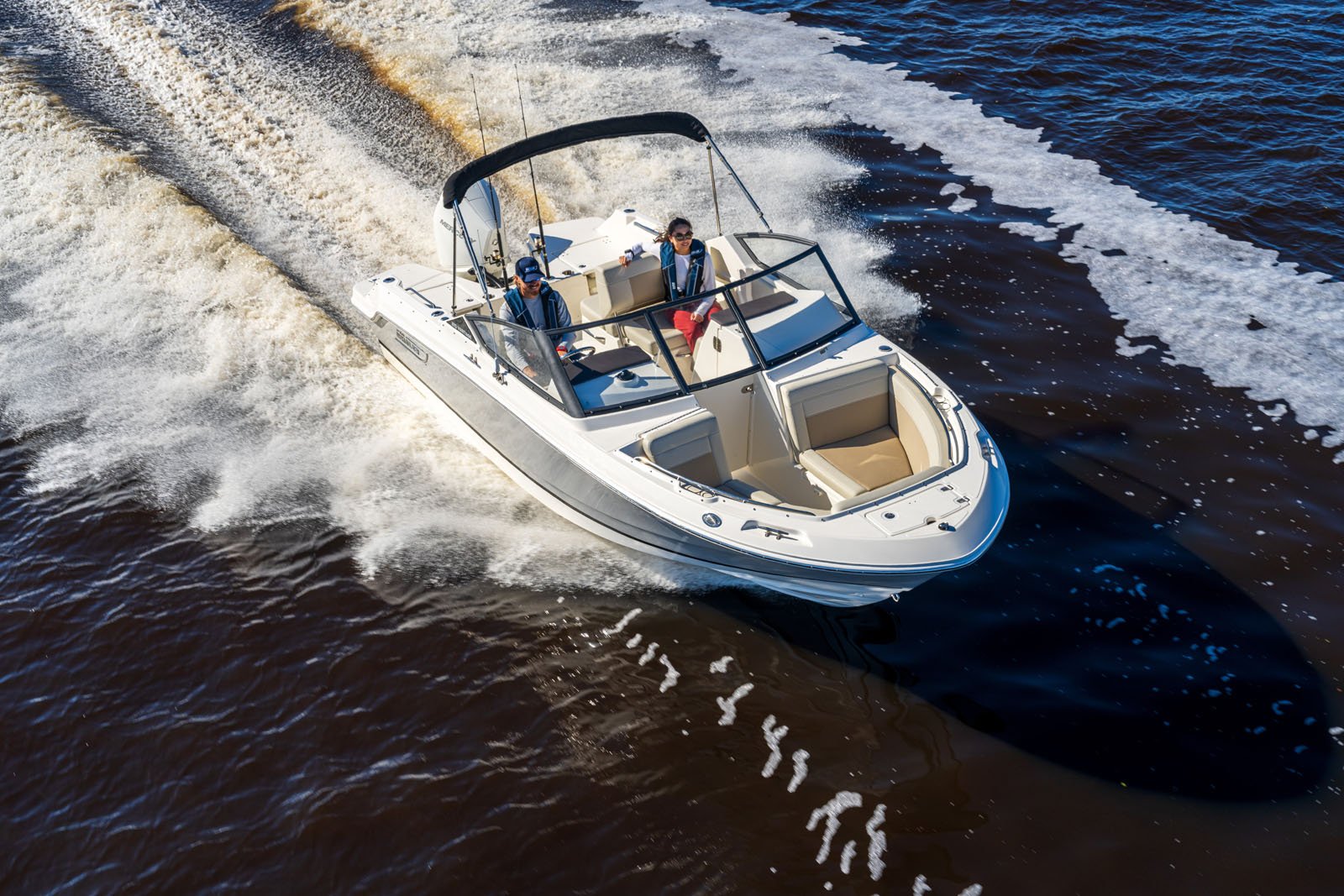

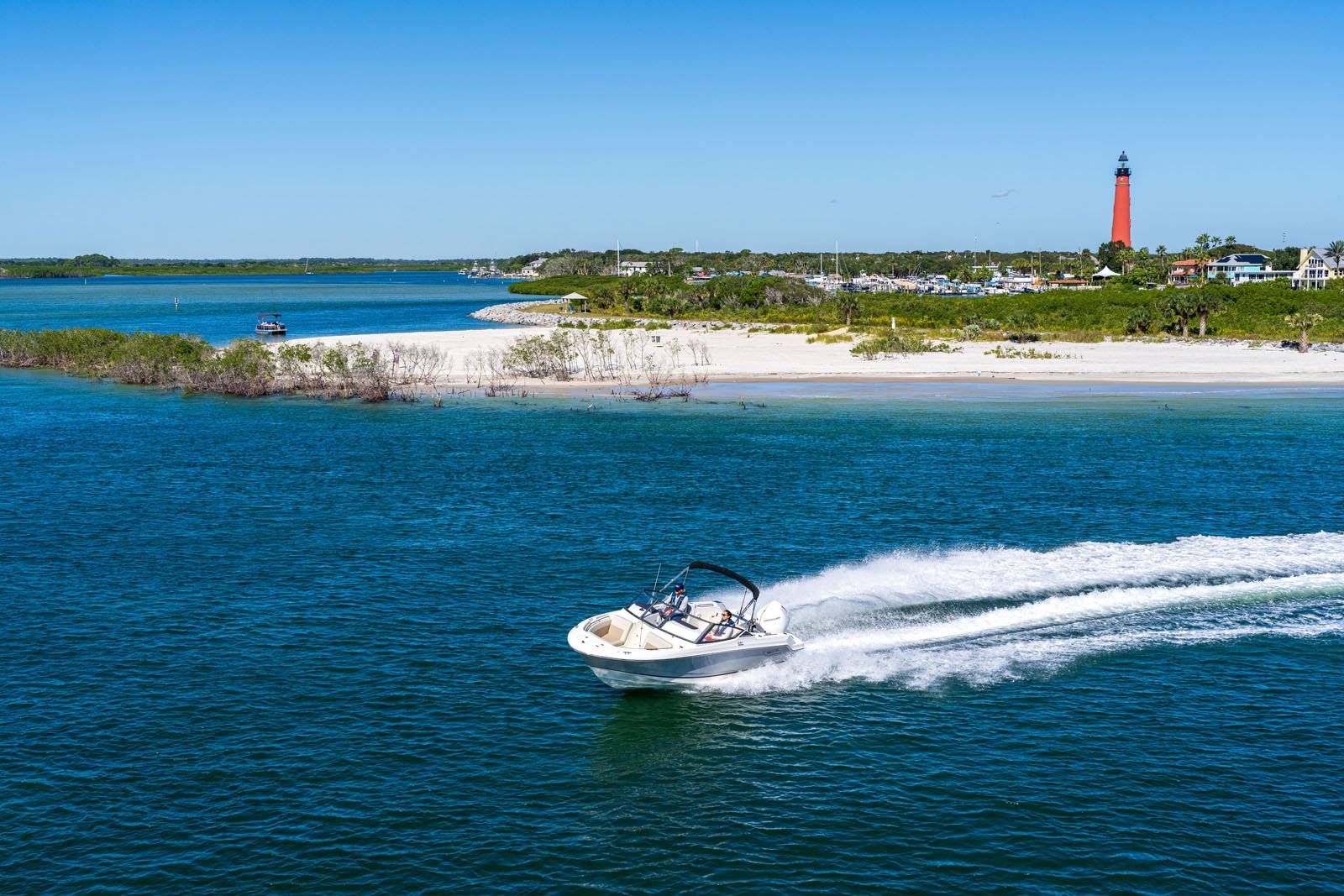

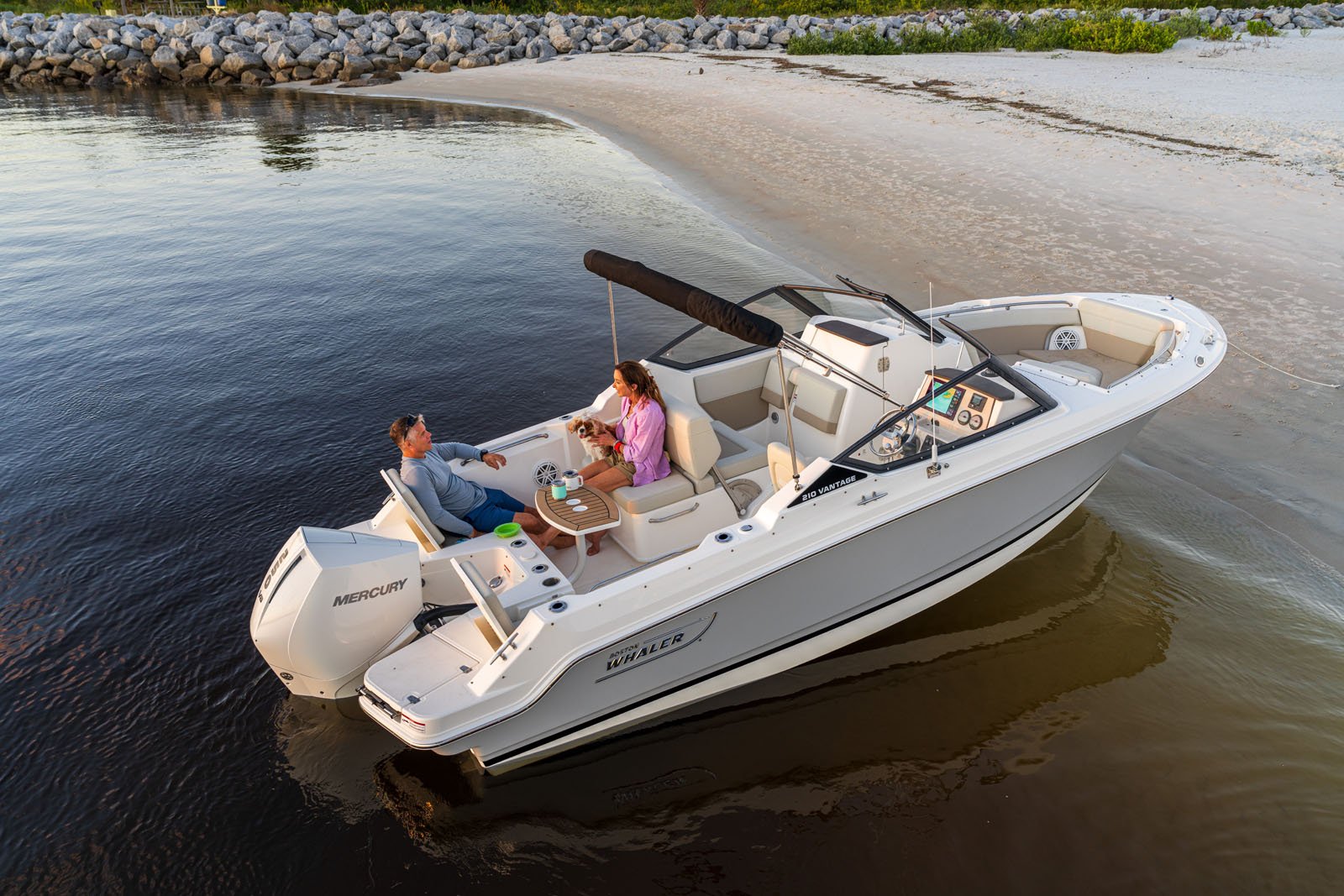

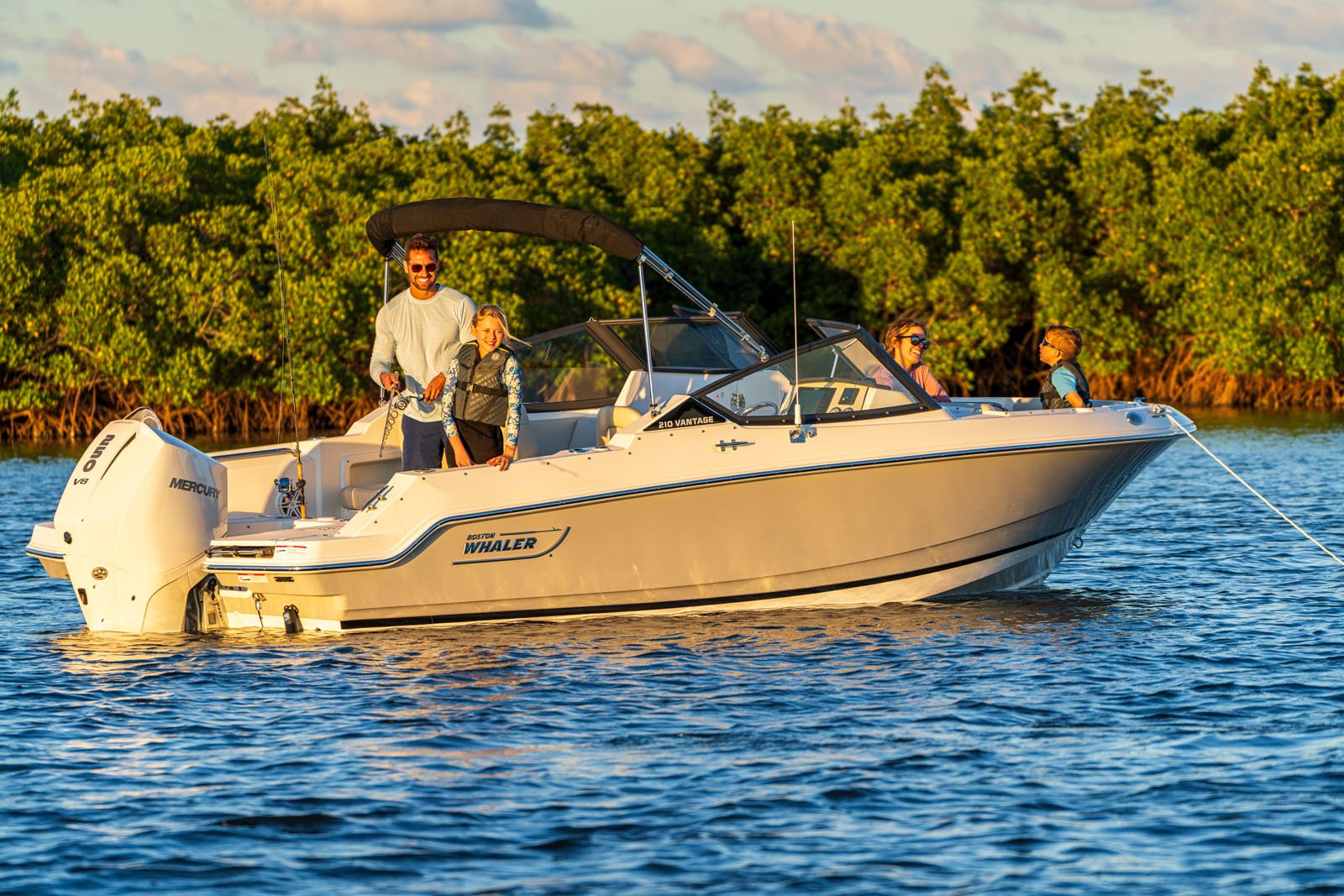

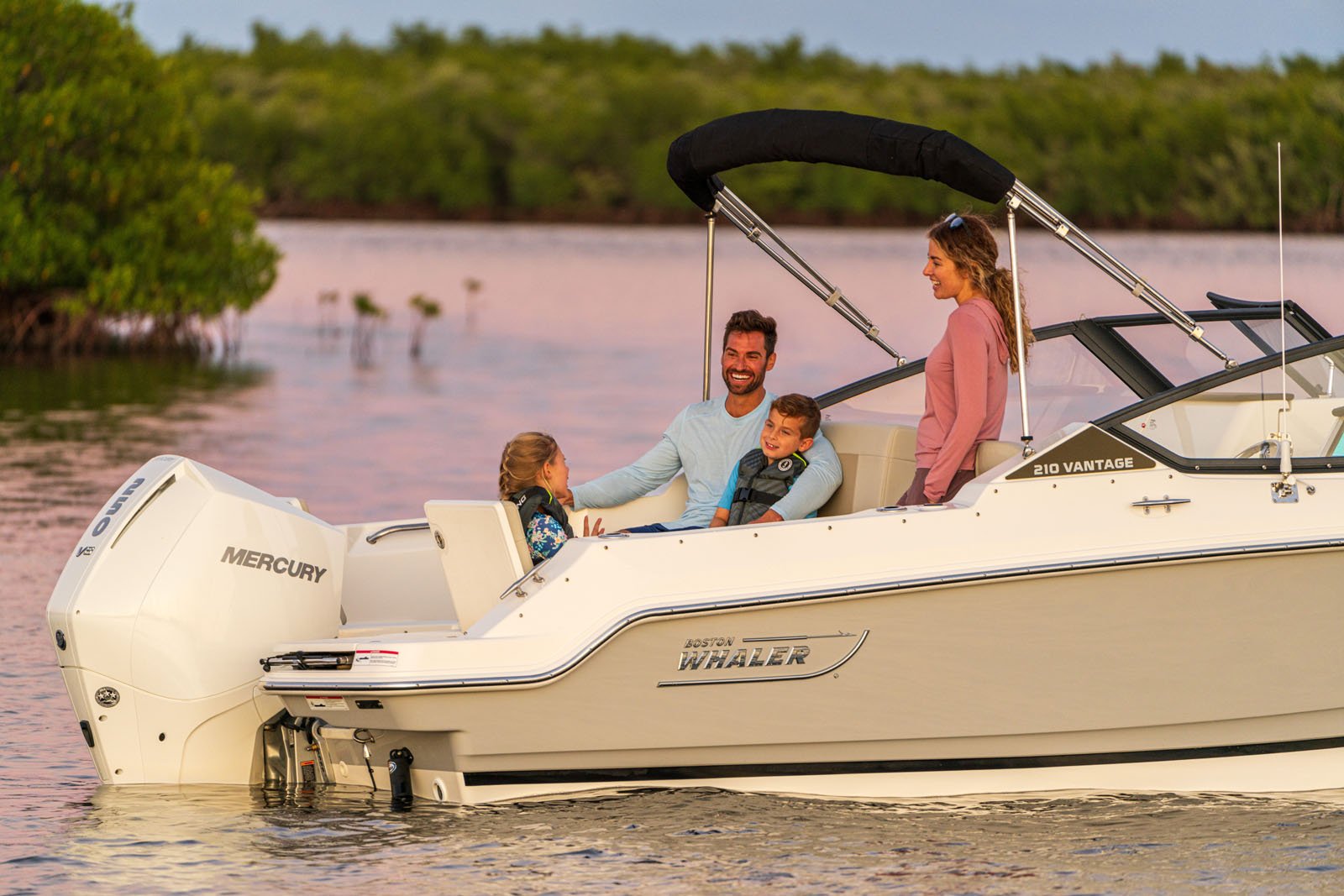

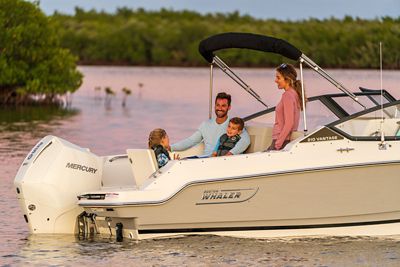

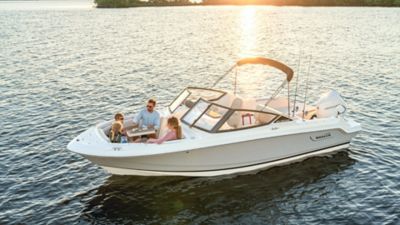

210 Vantage
The 210 Vantage just will surprise you. It’s a boat designed to meet the needs of the widest possible range of boaters—from fun-loving families to hardcore anglers. A dual console cockpit with wraparound windshield provides functional comfort for passengers. Comfortable seating in the bow, cockpit and stern allows for family-sized crews to relax all day. And roomy storage throughout the boat means you can load in all the gear you need for any type of adventure on the water. At a mere 21 feet, it’s easily trailerable, but 250 horsepower on the transom means you can get up and go when you’re ready to ride.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.
Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
210 VANTAGE FEATURES
- Wrap-around glass windshield provides maximum protection from the elements
- Flip up backrest for stern seating and additional cockpit space
- Stern casting platform for fishing when seat backrests are down
- Optional convertible portside lounge with flipdown back rest and storage beneath
- Convenient portable head in the portside storage compartment

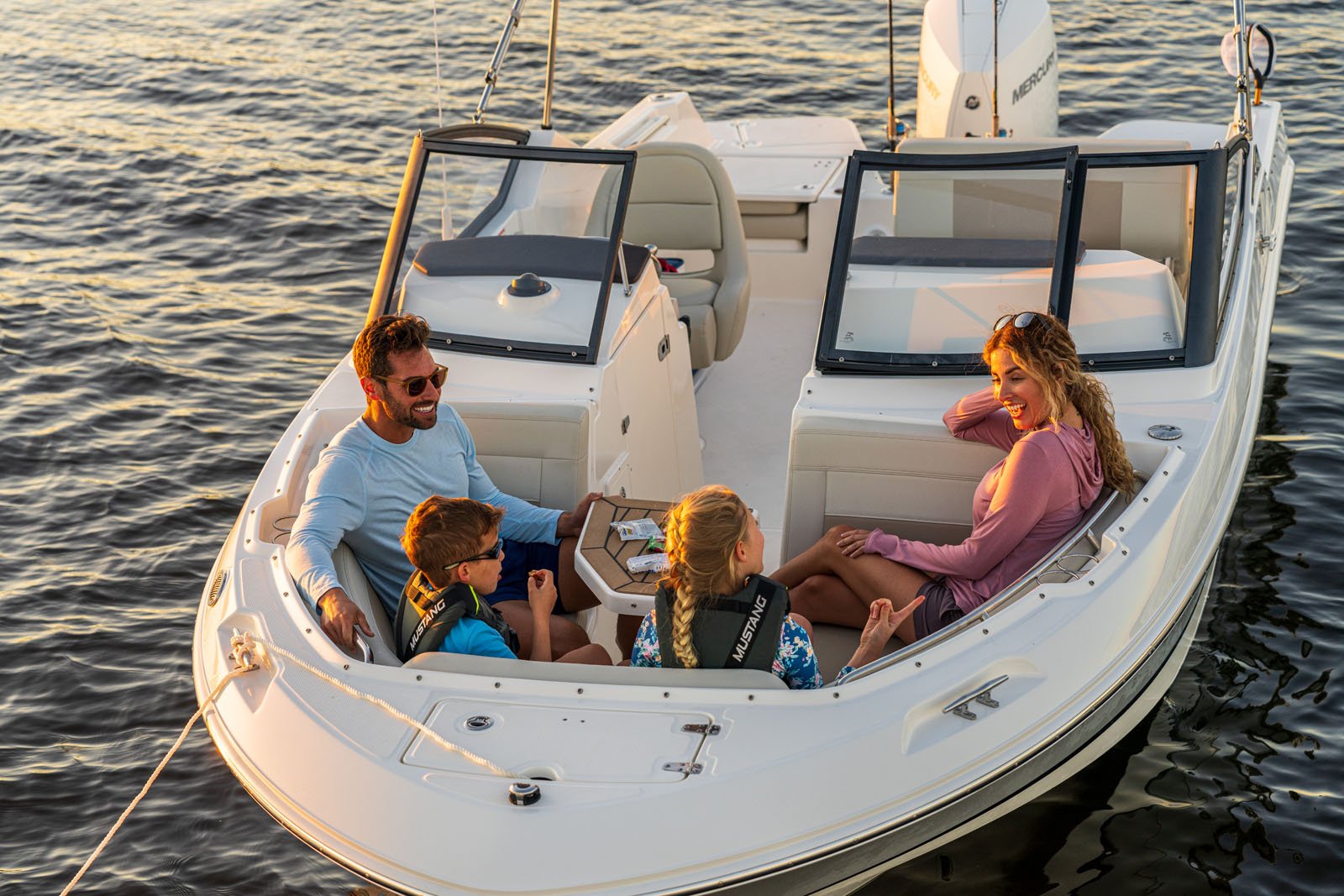

- Spacious, cushioned bow seating with roomy storage beneath
- Anchor locker for a convenient and accessible storage space
- Optional premium upholstery package for luxurious comfort and durability
- Optional state of the art electronics by Simrad® and JL Systems®
Capacity
9
Persons Capacity
80 gallons (303 L)
Fuel Capacity
2490 lbs (1129 kg)
Maximum Weight Capacity
2600 lbs (1179 kg)
Swamped Capacity
10 gallons (37.8 L)
Water Capacity
Dimensions
21' 3" (6.47 m)
L.O.A. (on centerline, from bow to engine mounting location)
8' 6" (2.59 m)
Beam
6' 11" (2.11 m)
Bridge Clearance (with suntop)
4' 11" (1.50 m)
Bridge Clearance
20º
Deadrise at Transom
18" in (0.46 m)
Draft
22' 8" (6.91 m)
L.O.A (with platforms)
28’ 10” X 8’ 6” X 7’ 11”
Package boat specs (on trailer/engine up)
25" (0.64 m)
Transom Height
Engines
250 hp (149 kW)
Maximum Horsepower
550 lbs (249 kg)
Maximum Engine Weight
200 hp (112 kW)
Minimum Horsepower
Weight
4,880 lbs (2214 kg)
Weight (with engine, fuel and water)
3,810 lbs (1728 kg)
Weight (dry, no engine)
9
Persons Capacity
80 gallons (303 L)
Fuel Capacity
2490 lbs (1129 kg)
Maximum Weight Capacity
2600 lbs (1179 kg)
Swamped Capacity
10 gallons (37.8 L)
Water Capacity
21' 3" (6.47 m)
L.O.A. (on centerline, from bow to engine mounting location)
8' 6" (2.59 m)
Beam
6' 11" (2.11 m)
Bridge Clearance (with suntop)
4' 11" (1.50 m)
Bridge Clearance
20º
Deadrise at Transom
18" in (0.46 m)
Draft
22' 8" (6.91 m)
L.O.A (with platforms)
28’ 10” X 8’ 6” X 7’ 11”
Package boat specs (on trailer/engine up)
25" (0.64 m)
Transom Height
250 hp (149 kW)
Maximum Horsepower
550 lbs (249 kg)
Maximum Engine Weight
200 hp (112 kW)
Minimum Horsepower
4,880 lbs (2214 kg)
Weight (with engine, fuel and water)
3,810 lbs (1728 kg)
Weight (dry, no engine)
Standard features & Options
Bow bolsters
Bow cushions with backrests
Bow walkthrough block off panel
Drink holders (4)
Fiberglass lids with latches (2)
Low profile welded stainless steel forward grab rails
26" cockpit depth
8" stainless steel cleats; (2) bow, (2) stern (2) spring line
Anchor locker with storage for fluke anchors
Bow and stern eyes
Cockpit courtesy lights (Blue)
Covered telescoping swim ladder with stainless steel grab rail
Casting platform – Port and Starboard aft
Heavy-duty rub rail
Motorwell drains (2)
Stainless cup holders for aft seats (2)
Rod holders – Stainless Steel, (2 gunnel mounted, 3 on transom box)
Self-bailing cockpit sole
Low profile stainless steel grab rails
200 XL V6 CMS (DTS) Black Mercury four stroke engine with hydraulic power steering
SmartCraft deluxe gauge package
Tilt steering
Stainless steel propeller
80 -gallon fuel tank
Automatic bilge pump
Dual battery trays with switch and automatic charging relay for house bank charging
Electric horn
LED navigation lights
Vessel View Mobile
Active engine trim
Grab rail - stainless steel
Interior light (white)
Gasketed lockable entry door
Bow seating area with lounge backrests port and starboard
Port and Starboard - Custom helm seat with pedestal and slide
Port and Starboard stern seats with folding backrests
All Rails Welded 316-L Stainless Steel
All Hardware 316-L Stainless Steel
Access panel to electronics
Cast stainless steel steering wheel with knob
Compass
Dash visor
Drink holders (2)
Electronics mounting surface
12V receptacle
USB outlet
Helm footrests
Electrical switch panel with integrated circuit breaker protection
Tempered glass windshield
Bow anchor locker with drain
Starboard console storage with stainless steel latch
Port console storage compartment with stainless steel latch
Port and starboard bow storage lockers with overboard drains
Gelcoat Hull Side Colors
White
White
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Platinum
Platinum
Graphic Colors
Red graphics
Red graphics
Blue graphics
Blue graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Chrome graphics
Chrome graphics
Upholstery Package
Standard upholstery package
Standard upholstery package
All exterior upholstery, two-tone light tan
Premium upholstery package
Premium upholstery package
All exterior upholstery, two-tone beige and taupe
Tops & Towers
Suntop with boot
Suntop with boot
Single Engine
200 XL V6 DTS Black Mercury engine
with hydraulic power steering
200 XL V6 DTS White Mercury engine
with hydraulic power steering
225 XL V6 DTS Black Mercury engine
with hydraulic power steering
225 XL V6 DTS White Mercury engine
with hydraulic power steering
250 XL V8 DTS Black Mercury engine
with hydraulic power steering
250 XL V8 DTS White Mercury engine
with hydraulic power steering
Additional Seating
Convertible port lounge with storage
(includes: forward and aft-facing dual seats that convert into an aft-facing lounge with storage under both the forward and aft seats. Insulated built-in 18-gallon cooler that drains overboard, a coaming pocket with three cupholders, as well as port bolster and head door bolster)
Packages
Plumbing package
Includes: portable head with pumpout, freshwater shower with 9 gallon tank and stern sprayer
Fishing package
(Must select port side lounge)(includes:18 gallon livewell with light located in aft seat of port lounge, raw-water washdown, lockable rod storage in starboard side console (fits 7” rods) and additional stainless steel gunnel mounted rod holders (2)
Railings and Rub Rails
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Rails- black rub rail with stainless insert
Rails- black rub rail with stainless insert
Notable Options & Accessories
Bow tow eye
Bow tow eye
Table - bow table with filler cushion
(includes: mounting hardware)
Table - at cockpit
with dedicated storage
Ski pylon
(with storage in starboard console)
Electric trim tabs with indicator
Electric trim tabs with indicator
Trailer - aluminum
Battery Package-factory installed GR31 AGM batteries
Battery Package-factory installed GR31 AGM batteries
Navigation
Nav Package, Simrad 12" NSX
(includes: Simrad NSX 12” MFD (GPS, Chart plotter, Fishfinder), Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan), Integrated Mercury SmartCraft Connect and C-Map® DiscoverTM X Chart Card: North America/Canada)
Nav Package, Simrad 9" NSX
(includes: Simrad NSX 9” MFD (GPS, Chart plotter, Fishfinder), active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan), Integrated Mercury SmartCraft Connect and C-Map® DiscoverTM X Chart Card: North America/Canada)
Electronics
Stereo - JL MM55 Audio AM/FM
(includes: waterproof speakers (4), MP3/USB inputs and Bluetooth compatibility)
VHF Radio (Simrad)
VHF Radio (Simrad)
CMAP Discovery X Chart Card - South America/Caribbean
CMAP Discovery X Chart Card - South America/Caribbean
CMAP Discovery X Chart Card - Australia/New Zealand
CMAP Discovery X Chart Card - Australia/New Zealand
CMAP Discovery X Chart Card - Central/West Europe
CMAP Discovery X Chart Card - Central/West Europe
CMAP Discovery X Chart Card - North/Central Europe
CMAP Discovery X Chart Card - North/Central Europe
CMAP Discovery X Chart Card - Southern Europe
CMAP Discovery X Chart Card - Southern Europe
CMAP Discovery X Chart Card - Africa/Arabic Sea
CMAP Discovery X Chart Card - Africa/Arabic Sea
CMAP Discovery X Chart Card - Asia
CMAP Discovery X Chart Card - Asia
First Mate Safety & Security System Single Engine
First Mate Safety & Security System Single Engine
First Mate Safety & Security System FOB Kit
First Mate Safety & Security System FOB Kit
Standard Features
Bow bolsters
Bow cushions with backrests
Bow walkthrough block off panel
Drink holders (4)
Fiberglass lids with latches (2)
Low profile welded stainless steel forward grab rails
26" cockpit depth
8" stainless steel cleats; (2) bow, (2) stern (2) spring line
Anchor locker with storage for fluke anchors
Bow and stern eyes
Cockpit courtesy lights (Blue)
Covered telescoping swim ladder with stainless steel grab rail
Casting platform – Port and Starboard aft
Heavy-duty rub rail
Motorwell drains (2)
Stainless cup holders for aft seats (2)
Rod holders – Stainless Steel, (2 gunnel mounted, 3 on transom box)
Self-bailing cockpit sole
Low profile stainless steel grab rails
200 XL V6 CMS (DTS) Black Mercury four stroke engine with hydraulic power steering
SmartCraft deluxe gauge package
Tilt steering
Stainless steel propeller
80 -gallon fuel tank
Automatic bilge pump
Dual battery trays with switch and automatic charging relay for house bank charging
Electric horn
LED navigation lights
Vessel View Mobile
Active engine trim
Grab rail - stainless steel
Interior light (white)
Gasketed lockable entry door
Bow seating area with lounge backrests port and starboard
Port and Starboard - Custom helm seat with pedestal and slide
Port and Starboard stern seats with folding backrests
All Rails Welded 316-L Stainless Steel
All Hardware 316-L Stainless Steel
Access panel to electronics
Cast stainless steel steering wheel with knob
Compass
Dash visor
Drink holders (2)
Electronics mounting surface
12V receptacle
USB outlet
Helm footrests
Electrical switch panel with integrated circuit breaker protection
Tempered glass windshield
Bow anchor locker with drain
Starboard console storage with stainless steel latch
Port console storage compartment with stainless steel latch
Port and starboard bow storage lockers with overboard drains
Options
Gelcoat Hull Side Colors
White
White
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Platinum
Platinum
Graphic Colors
Red graphics
Red graphics
Blue graphics
Blue graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Chrome graphics
Chrome graphics
Upholstery Package
Standard upholstery package
Standard upholstery package
All exterior upholstery, two-tone light tan
Premium upholstery package
Premium upholstery package
All exterior upholstery, two-tone beige and taupe
Tops & Towers
Suntop with boot
Suntop with boot
Single Engine
200 XL V6 DTS Black Mercury engine
with hydraulic power steering
200 XL V6 DTS White Mercury engine
with hydraulic power steering
225 XL V6 DTS Black Mercury engine
with hydraulic power steering
225 XL V6 DTS White Mercury engine
with hydraulic power steering
250 XL V8 DTS Black Mercury engine
with hydraulic power steering
250 XL V8 DTS White Mercury engine
with hydraulic power steering
Additional Seating
Convertible port lounge with storage
(includes: forward and aft-facing dual seats that convert into an aft-facing lounge with storage under both the forward and aft seats. Insulated built-in 18-gallon cooler that drains overboard, a coaming pocket with three cupholders, as well as port bolster and head door bolster)
Packages
Plumbing package
Includes: portable head with pumpout, freshwater shower with 9 gallon tank and stern sprayer
Fishing package
(Must select port side lounge)(includes:18 gallon livewell with light located in aft seat of port lounge, raw-water washdown, lockable rod storage in starboard side console (fits 7” rods) and additional stainless steel gunnel mounted rod holders (2)
Railings and Rub Rails
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Rails- black rub rail with stainless insert
Rails- black rub rail with stainless insert
Notable Options & Accessories
Bow tow eye
Bow tow eye
Table - bow table with filler cushion
(includes: mounting hardware)
Table - at cockpit
with dedicated storage
Ski pylon
(with storage in starboard console)
Electric trim tabs with indicator
Electric trim tabs with indicator

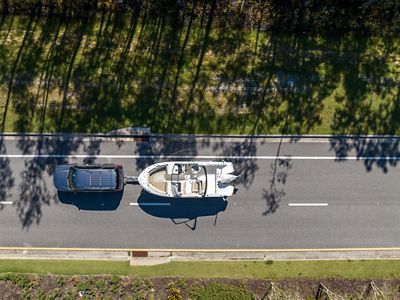

Trailer - aluminum
Battery Package-factory installed GR31 AGM batteries
Battery Package-factory installed GR31 AGM batteries
Navigation
Nav Package, Simrad 12" NSX
(includes: Simrad NSX 12” MFD (GPS, Chart plotter, Fishfinder), Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan), Integrated Mercury SmartCraft Connect and C-Map® DiscoverTM X Chart Card: North America/Canada)
Nav Package, Simrad 9" NSX
(includes: Simrad NSX 9” MFD (GPS, Chart plotter, Fishfinder), active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan), Integrated Mercury SmartCraft Connect and C-Map® DiscoverTM X Chart Card: North America/Canada)
Electronics
Stereo - JL MM55 Audio AM/FM
(includes: waterproof speakers (4), MP3/USB inputs and Bluetooth compatibility)
VHF Radio (Simrad)
VHF Radio (Simrad)
CMAP Discovery X Chart Card - South America/Caribbean
CMAP Discovery X Chart Card - South America/Caribbean
CMAP Discovery X Chart Card - Australia/New Zealand
CMAP Discovery X Chart Card - Australia/New Zealand
CMAP Discovery X Chart Card - Central/West Europe
CMAP Discovery X Chart Card - Central/West Europe
CMAP Discovery X Chart Card - North/Central Europe
CMAP Discovery X Chart Card - North/Central Europe
CMAP Discovery X Chart Card - Southern Europe
CMAP Discovery X Chart Card - Southern Europe
CMAP Discovery X Chart Card - Africa/Arabic Sea
CMAP Discovery X Chart Card - Africa/Arabic Sea
CMAP Discovery X Chart Card - Asia
CMAP Discovery X Chart Card - Asia
First Mate Safety & Security System Single Engine
First Mate Safety & Security System Single Engine
First Mate Safety & Security System FOB Kit
First Mate Safety & Security System FOB Kit
?$IMG-670-620-D$&fit=fit&fmt=png-alpha)

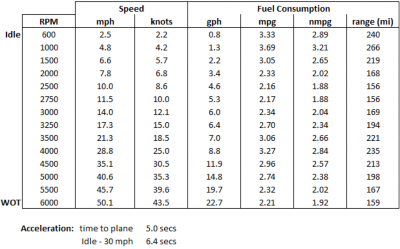

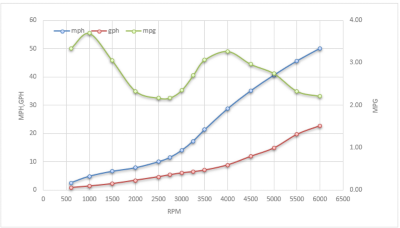

Model: 210 Vantage
Hull #: USBWCE0047F324
Engine: Mercury 2500 v8 Four Stroke (CMS)
Gear Ratio: 1.75 :1
Prop: 17P Enertia
Fuel Capacity: 80 gallons
Notable Options: Cockpit Table, Ski Pylon, Plumbing Package, Fishing Package, Trim Tabs, Stereo, VHF Radio, 12" Electronics
Test Date: 23-Aug-23
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 4,235 LBS
Fuel: 40 gallons
Water: 0 gallon
Test Gear: 25 lbs
Personnel: 330 lbs
Test Weight: 4,836 lbs
Water Conditions: 89° F
Weather Conditions: 84° F

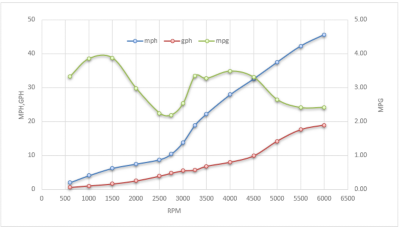

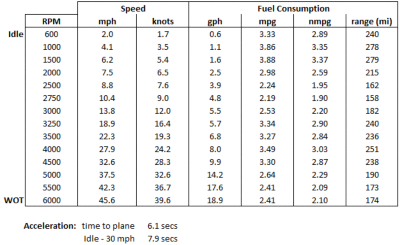

Model: 210 Vantage
Hull #: USBWCE0047F324
Engine: Mercury 225 V6 Four Stroke
Horsepower: 225
Gear Ratio: 1.85 :1
Prop: 16P Enertia
Fuel Capacity: 80 gallons
Notable Options: Cockpit Table, Ski Pylon, Plumbing Package, Fishing Package, Trim Tabs, Stereo, VHF Radio, 12" Electronics
Test Date: 6-Nov-23
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 4,181 LBS
Fuel: 34 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 370 lbs
Test Weight: 4,785 lbs
Water Conditions: 70° F
Weather Conditions: 61° F

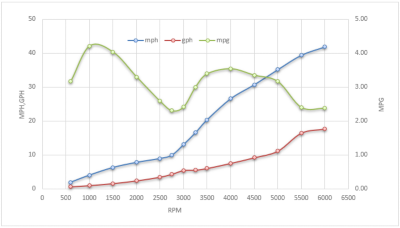

Model: 210 Vantage
Hull #:USBWCE0047F324
Engine: Mercury 200 V6 Four Stroke
Horsepower: 200
Gear Ratio: 1.85 :1
Prop: 15P Enertia
Fuel Capacity: 80 gallons
Notable Options: Cockpit Table, Ski Pylon, Plumbing Package, Fishing Package, Trim Tabs, Stereo, VHF Radio,12" Electronics
Test Date: 6-Nov-23
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 4,181 LBS
Fuel: 46 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 370 lbs
Test Weight: 4,859 lbs
Water Conditions: 70° F
Weather Conditions: 76° F
Model: 210 Vantage
Hull #: USBWCE0047F324
Engine: Mercury 2500 v8 Four Stroke (CMS)
Gear Ratio: 1.75 :1
Prop: 17P Enertia
Fuel Capacity: 80 gallons
Notable Options: Cockpit Table, Ski Pylon, Plumbing Package, Fishing Package, Trim Tabs, Stereo, VHF Radio, 12" Electronics
Test Date: 23-Aug-23
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 4,235 LBS
Fuel: 40 gallons
Water: 0 gallon
Test Gear: 25 lbs
Personnel: 330 lbs
Test Weight: 4,836 lbs
Water Conditions: 89° F
Weather Conditions: 84° F
Model: 210 Vantage
Hull #: USBWCE0047F324
Engine: Mercury 225 V6 Four Stroke
Horsepower: 225
Gear Ratio: 1.85 :1
Prop: 16P Enertia
Fuel Capacity: 80 gallons
Notable Options: Cockpit Table, Ski Pylon, Plumbing Package, Fishing Package, Trim Tabs, Stereo, VHF Radio, 12" Electronics
Test Date: 6-Nov-23
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 4,181 LBS
Fuel: 34 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 370 lbs
Test Weight: 4,785 lbs
Water Conditions: 70° F
Weather Conditions: 61° F

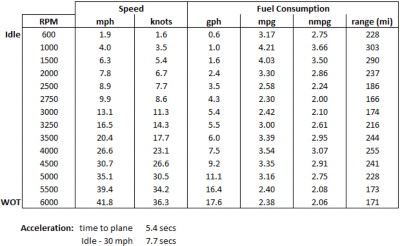

Model: 210 Vantage
Hull #:USBWCE0047F324
Engine: Mercury 200 V6 Four Stroke
Horsepower: 200
Gear Ratio: 1.85 :1
Prop: 15P Enertia
Fuel Capacity: 80 gallons
Notable Options: Cockpit Table, Ski Pylon, Plumbing Package, Fishing Package, Trim Tabs, Stereo, VHF Radio,12" Electronics
Test Date: 6-Nov-23
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 4,181 LBS
Fuel: 46 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 370 lbs
Test Weight: 4,859 lbs
Water Conditions: 70° F
Weather Conditions: 76° F
