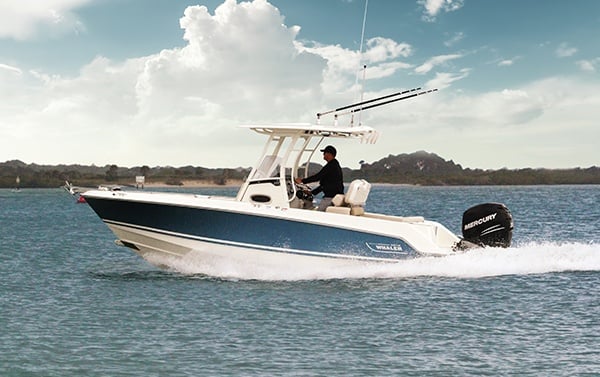

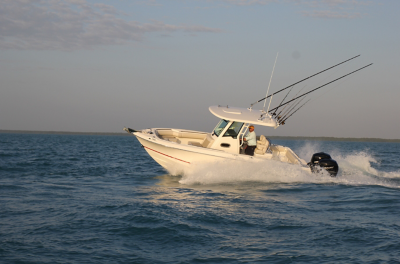

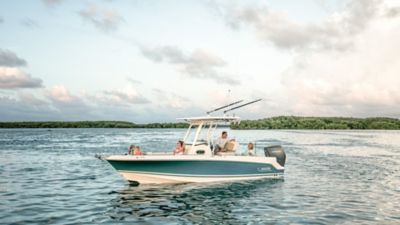

230 Outrage
Our most compact offshore center console boat, the 230 Outrage can take you from the bay past the breakers to target the species of your choice. Integrated Simrad® technology at the helm keeps you in control of all navigation and internal functions, and a carefully designed interior layout makes this the most fishable boat in its class. A convertible leaning post conceals a handy work station and extra aft-facing seating, and storage throughout this 23-ft. center console boat provides room for everything your adventure requires.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.
Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
230 OUTRAGE FEATURES
- Seamlessly integrated Simrad technology for precise navigation and enhanced onboard control
- Standard 250 V8 Black Mercury Verado engine with digital throttle shift and hydraulic steering
- Selectable deluxe leaning post with (30 gallon) livewell exemplifies ergonomic comfort and functionality, providing anglers with convenient access to live bait while optimizing space utilization for an enhanced on-water experience
- Fold-out stern seat with backrest bolster provides additional comfort for all your crew

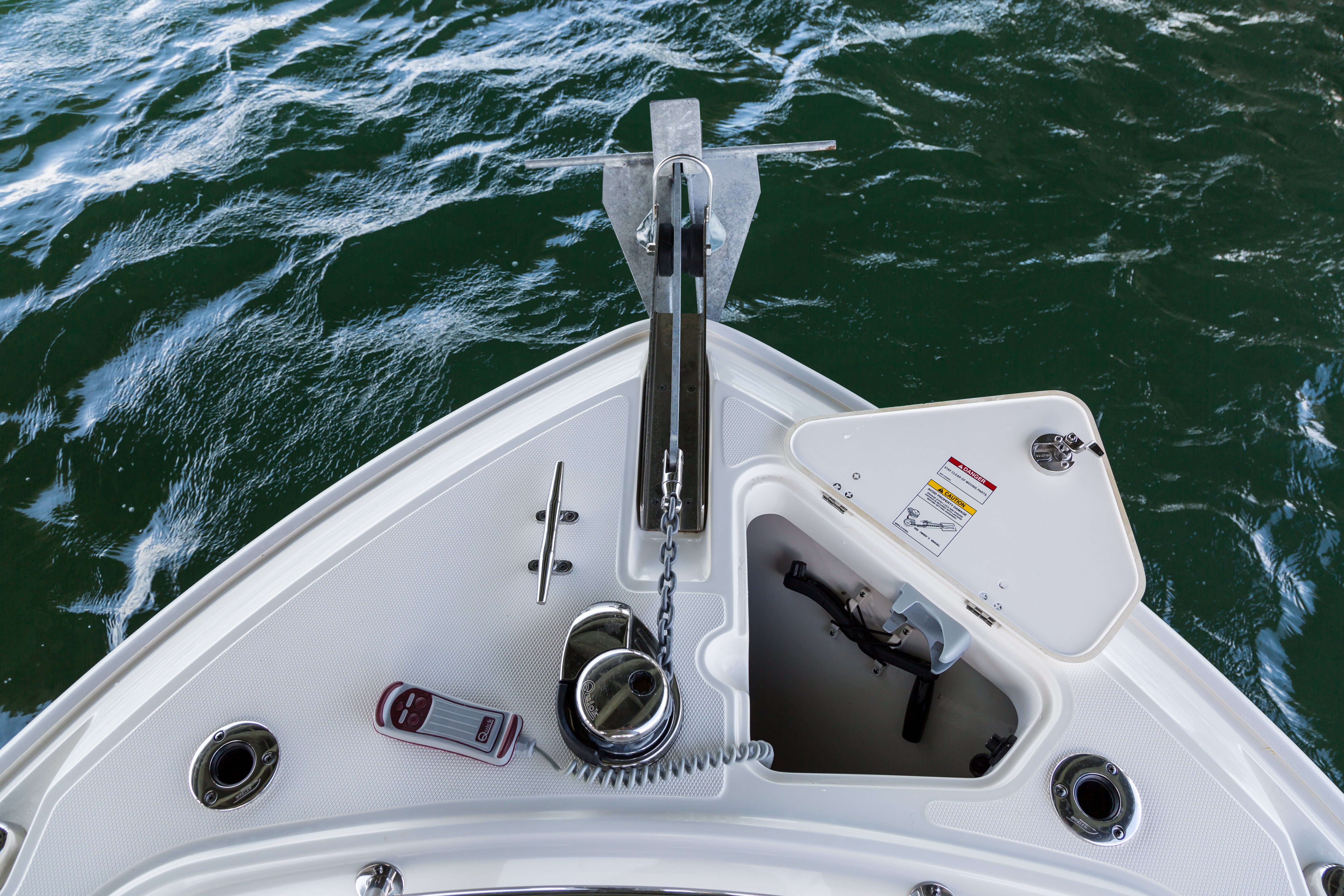

- Optional Anchor Package includes windlass and stainless steel anchor make anchoring safe and convenient
- Standard bow cooler with cushion and backrest provides extra seating and storage
- Premium Package option with fishbox pump-out, fishing station, raw-water washdown, transom-mounted rod holders forward coaming bolsters and bow cushions
Capacity
10
Persons Capacity
110 gallons (416 L)
Fuel Capacity
3,100 lbs (1,400 kg)
Maximum Weight Capacity
4,960 lbs (2,250 kg)
Swamped Capacity
20 gallons (76 L)
Water Capacity
Dimensions
23’ 0” (7.01 m)
L.O.A.
8’ 6” (2.59 m)
Beam
6’ 3” (1.91 m)
Bridge Clearance (no top)
8’ 5” (2.57 m)
Bridge Clearance (with T-Top)
18.5” (0.47 m)
Draft
16 gallons (60.6 L)
Livewell Volume (30 gallons optional113.6 L)
30” (0.76 m)
Transom Height
Engines
400 HP (261 kW)
Maximum Horsepower
910 lbs (413 kg)
Maximum Engine Weight
250 HP (186 kW)
Minimum Horsepower
Weight
3,800 lbs (1,724 kg)
Weight (dry, no engine)
5,548 lbs (2,516 kg)
Weight (with engine, fuel and water)
10
Persons Capacity
110 gallons (416 L)
Fuel Capacity
3,100 lbs (1,400 kg)
Maximum Weight Capacity
4,960 lbs (2,250 kg)
Swamped Capacity
20 gallons (76 L)
Water Capacity
23’ 0” (7.01 m)
L.O.A.
8’ 6” (2.59 m)
Beam
6’ 3” (1.91 m)
Bridge Clearance (no top)
8’ 5” (2.57 m)
Bridge Clearance (with T-Top)
18.5” (0.47 m)
Draft
16 gallons (60.6 L)
Livewell Volume (30 gallons optional113.6 L)
30” (0.76 m)
Transom Height
400 HP (261 kW)
Maximum Horsepower
910 lbs (413 kg)
Maximum Engine Weight
250 HP (186 kW)
Minimum Horsepower
3,800 lbs (1,724 kg)
Weight (dry, no engine)
5,548 lbs (2,516 kg)
Weight (with engine, fuel and water)
Standard features & Options
12-V receptacle (2) (delete 1 when stereo is selected for USB port)
Access panel to electronics
Acrylic entry door with lock
Acrylic windshield
Cast stainless steel steering wheel with knob
Compass
Courtesy lights (4)
Electronics mounting surface
Fire extinguisher pocket
Helm and companion footrests
Smartcraft speedometer with tach and electrical switch panel with circuit breaker protection and illuminated text
Interior light
Molded fiberglass console liner
Stainless steel drink holders (2)
Stainless steel grab rails (2)
Stainless steel opening port light with screen
25” interior freeboard
8” stainless steel cleats - bow (2), stern with stainless steel hawse pipes (2), spring line (2)
Bow and stern eyes
Cockpit courtesy lights
Drink holders (6)
Gunnel mounted stainless steel rod holders (4)
Heavy-duty rub rail (white)
Integral swim platform with recessed telescoping stainless steel swim ladder and grab rail
Livewell (16 gallons)
Motorwell drains (2)
Recessed welded stainless steel forward rails
Self-bailing cockpit sole
Stainless steel anchor roller with cleat
Stainless steel cockpit toe rails with downrigger weight holders
Stainless steel grab rails
Stern stainless steel hawse pipes with drink holders (2)
Transom door with stainless steel latch
Vertical rod holders (bow) (4) (port and starboard)
250 V8 DTS Black Mercury Verado engine with hydraulic steering and fuel/water separator
Automatic bilge pump
Dual battery trays with switch
Electric horn
Fuel tank (110 gallons)
LED navigation lights
Recessed electric trim tabs with indicators (replaced with VesselView 4 on dual engine options)
Stainless steel propeller
Tilt steering
Transducer mount area
Vessel view mobile

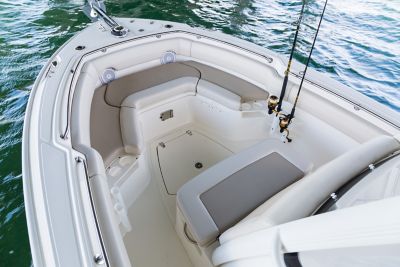

Bow seating area
Fold-out stern seat with backrest bolster
Integrated forward console seat with base and backrest cushion
Powder coated convertible forward/aft facing leaning post with flip up bolster, fold down work surface and 54 qt. igloo cooler
All Hardware 316-L Stainless Steel
All Rails Welded 316-L Stainless Steel
Bow anchor locker with drain
Console storage with lockable stainless steel latch
In-deck fishboxes with overboard drains (port and starboard) with compression latches
Insulated bow storage locker / fishbox
Under gunnel rod racks
Gelcoat Hull Side Colors
Glacier Green
Glacier Green
Light Blue
Light Blue
Platinum
Platinum
Classic Desert Tan
Classic Desert Tan
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver stripe)
Upholstery Package
Sea (Gray) Exterior Upholstery Package
Sea (Gray) Exterior Upholstery Package
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Tops & Towers
Hardtop
comes with storage bag (black or blue canvas) (must select frame color, white or black)
Hardtop Underside Color
Abaco Blue
Abaco Blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue
Glacier Green
Glacier Green
Light Blue
Light Blue
Classic Desert Tan
Classic Desert Tan
Single Engine
250 V8 DTS Black Mercury Verado engine
with hydraulic steering and fuel/water separator (standard engine)
250 V8 DTS White Mercury Verado engine
with hydraulic steering and fuel/water separator
300 V8 DTS Black Mercury Verado engine
with power steering and fuel/water separators
300 V8 DTS White Mercury Verado engine
with power steering and fuel/water separators
400 V10 DTS Black Mercury Verado Engine
with hydraulic steering and fuel/water separator
400 V10 DTS White Mercury Verado Engine
with hydraulic steering and fuel/water separator
Dual Engines
115 EFI Dual Black Command Thrust
Mercury engines with hydraulic steering and VesselView 4 (deletes fuel/water separators)
150 EFI Dual Black Mercury FourStroke
engines with hydraulic steering and VesselView 4 (deletes fuel/water separators)
Helm Seating
Seating - deluxe leaning post with livewell
includes: fiberglass base, livewell (30-gallon) with blue interior, stainless steel rod holders (2)
Packages
Anchor Package
Stainless-steel anchor and anchor windlass – low profile with rode and anchor
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Rails - white rub rail w/ stainless insert
Rails - white rub rail w/ stainless insert
Entertaining Features

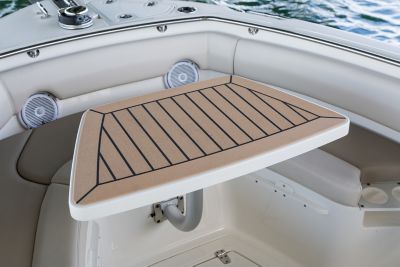

Table - at bow (with canvas cover)
Table - at bow (with canvas cover)
Notable Options & Accessories
Lighting - underwater LED
Batteries - GR31 AGM (factory installed)
Anchor windlass chain (150 foot)
(must select anchor windlass)
Freshwater shower (20 gallons)

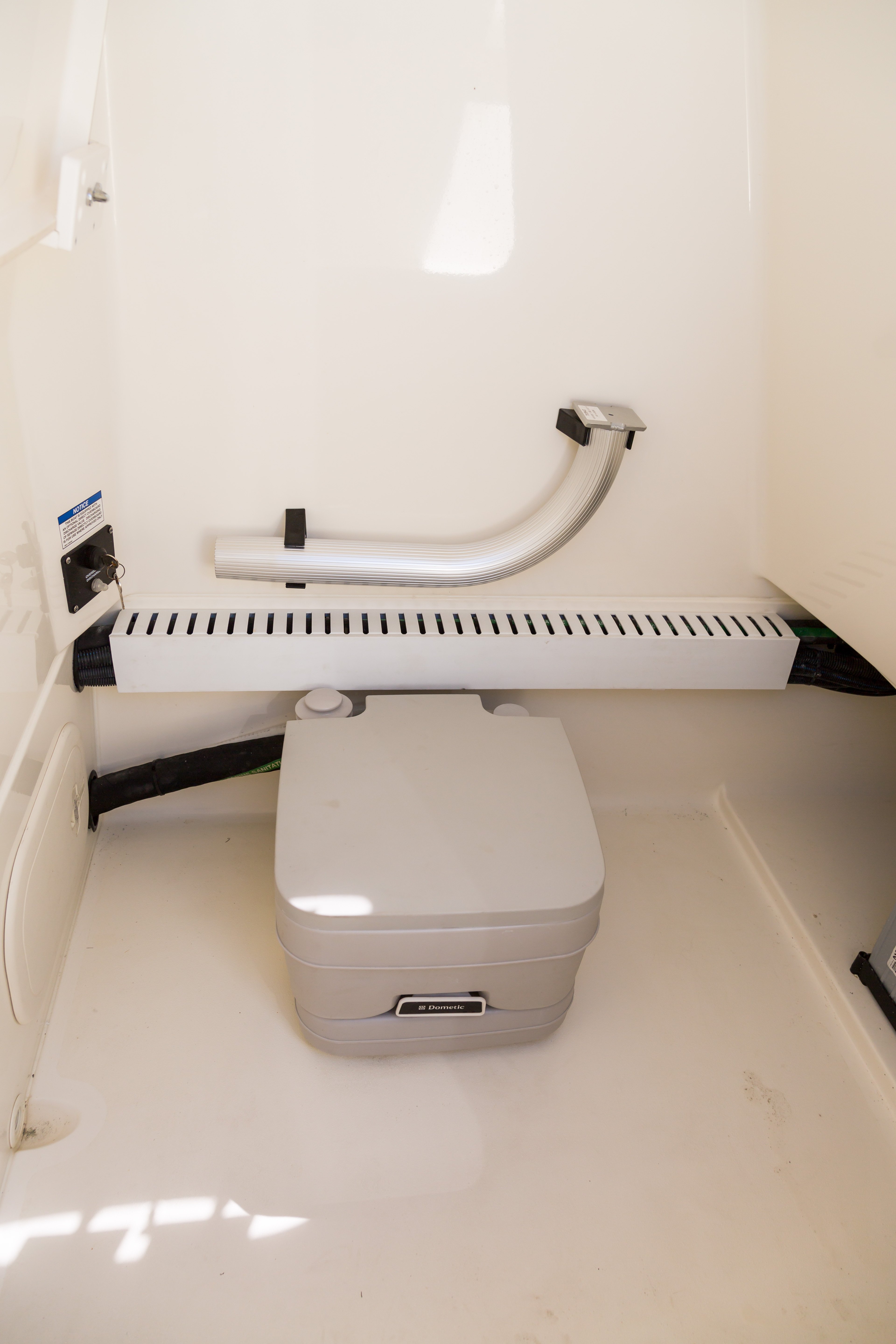

Portable head
with pump-out and overboard discharge
Ski pylon
Ski pylon
Bow tow eye
Bow tow eye
Hardtop w/radial outriggers
Hardtop w/radial outriggers
Lighting - underwater LED (dual engine)
Factory installed GR31 AGM batteries
Navigation
Nav Package, Simrad 9" NSX
(includes: Simrad NSX 9” MFD (GPS, Chart plotter, Fishfinder), active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan), Integrated Mercury SmartCraft Connect and C-Map® DiscoverTM X Chart Card: North America/Canada)
Nav Package, Simrad 9" NSX Add'l Display
Nav Package, Simrad 9" NSX Add'l Display
Electronics
VHF Radio (Simrad)
VHF Radio (Simrad)
VesselView 4 display
(not compatible with 115 EXLPT EFI Dual Command Thrust engines OR 15 CXL EFI Dual FourStroke engines)
Stereo - JL Audio AM/FM
Stereo JL Audio MM50 AM/FM with waterproof speakers (4), MP3/USB inputs, and Bluetooth compatible
CMAP Discovery X Chart Card - Asia
(Only compatible with NSX Displays)
First Mate Safety & Security System Fob Kit
Includes additional Man Overboard (MOB) FOB’s for additional passengers (Qty 4)
CMAP Discovery X Chart Card - South America/Caribbean
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - North/Central Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Arica/Arabic Sea
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Australia/New Zealand
(Only compatible with NSX Displays)
First Mate Safety & Security Sys – Single Engine
(Includes Captain FOB and 3 passenger FOB’s) (Not compatible with Dual Engine options)
Packages
Standard canvas cover package
Console cover (black or blue), leaning post cover (black or blue) (delete w/ leaning post with livewell), leaning post with livewell cover (deluxe) (black or blue) (not included w/ standard leaning post)
Seating canvas cover package
Console seat and backrest cover (black or blue), bow cushion cover (black or blue) and stern seat backrest cover (black or blue)
Sunshades
Sunshade at cockpit
(must select Fiberglass Hardtop)
Sunshade - at bow
(must select Fiberglass Hardtop)
Standard Features
12-V receptacle (2) (delete 1 when stereo is selected for USB port)
Access panel to electronics
Acrylic entry door with lock
Acrylic windshield
Cast stainless steel steering wheel with knob
Compass
Courtesy lights (4)
Electronics mounting surface
Fire extinguisher pocket
Helm and companion footrests
Smartcraft speedometer with tach and electrical switch panel with circuit breaker protection and illuminated text
Interior light
Molded fiberglass console liner
Stainless steel drink holders (2)
Stainless steel grab rails (2)
Stainless steel opening port light with screen
25” interior freeboard
8” stainless steel cleats - bow (2), stern with stainless steel hawse pipes (2), spring line (2)
Bow and stern eyes
Cockpit courtesy lights
Drink holders (6)
Gunnel mounted stainless steel rod holders (4)
Heavy-duty rub rail (white)
Integral swim platform with recessed telescoping stainless steel swim ladder and grab rail
Livewell (16 gallons)
Motorwell drains (2)
Recessed welded stainless steel forward rails
Self-bailing cockpit sole
Stainless steel anchor roller with cleat
Stainless steel cockpit toe rails with downrigger weight holders
Stainless steel grab rails
Stern stainless steel hawse pipes with drink holders (2)
Transom door with stainless steel latch
Vertical rod holders (bow) (4) (port and starboard)
250 V8 DTS Black Mercury Verado engine with hydraulic steering and fuel/water separator
Automatic bilge pump
Dual battery trays with switch
Electric horn
Fuel tank (110 gallons)
LED navigation lights
Recessed electric trim tabs with indicators (replaced with VesselView 4 on dual engine options)
Stainless steel propeller
Tilt steering
Transducer mount area
Vessel view mobile
Bow seating area
Fold-out stern seat with backrest bolster
Integrated forward console seat with base and backrest cushion
Powder coated convertible forward/aft facing leaning post with flip up bolster, fold down work surface and 54 qt. igloo cooler
All Hardware 316-L Stainless Steel
All Rails Welded 316-L Stainless Steel
Bow anchor locker with drain
Console storage with lockable stainless steel latch
In-deck fishboxes with overboard drains (port and starboard) with compression latches
Insulated bow storage locker / fishbox
Under gunnel rod racks
Options
Gelcoat Hull Side Colors
Glacier Green
Glacier Green
Light Blue
Light Blue
Platinum
Platinum
Classic Desert Tan
Classic Desert Tan
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver stripe)
Upholstery Package
Sea (Gray) Exterior Upholstery Package
Sea (Gray) Exterior Upholstery Package
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Tops & Towers
Hardtop
comes with storage bag (black or blue canvas) (must select frame color, white or black)
Hardtop Underside Color
Abaco Blue
Abaco Blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue
Glacier Green
Glacier Green
Light Blue
Light Blue
Classic Desert Tan
Classic Desert Tan
Single Engine
250 V8 DTS Black Mercury Verado engine
with hydraulic steering and fuel/water separator (standard engine)
250 V8 DTS White Mercury Verado engine
with hydraulic steering and fuel/water separator
300 V8 DTS Black Mercury Verado engine
with power steering and fuel/water separators
300 V8 DTS White Mercury Verado engine
with power steering and fuel/water separators
400 V10 DTS Black Mercury Verado Engine
with hydraulic steering and fuel/water separator
400 V10 DTS White Mercury Verado Engine
with hydraulic steering and fuel/water separator
Dual Engines
115 EFI Dual Black Command Thrust
Mercury engines with hydraulic steering and VesselView 4 (deletes fuel/water separators)
150 EFI Dual Black Mercury FourStroke
engines with hydraulic steering and VesselView 4 (deletes fuel/water separators)
Helm Seating
Seating - deluxe leaning post with livewell
includes: fiberglass base, livewell (30-gallon) with blue interior, stainless steel rod holders (2)
Packages
Anchor Package
Stainless-steel anchor and anchor windlass – low profile with rode and anchor
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Rails - white rub rail w/ stainless insert
Rails - white rub rail w/ stainless insert
Entertaining Features
Table - at bow (with canvas cover)
Table - at bow (with canvas cover)
Notable Options & Accessories
Lighting - underwater LED
Batteries - GR31 AGM (factory installed)
Anchor windlass chain (150 foot)
(must select anchor windlass)
Freshwater shower (20 gallons)
Portable head
with pump-out and overboard discharge
Ski pylon
Ski pylon
Bow tow eye
Bow tow eye
Hardtop w/radial outriggers
Hardtop w/radial outriggers
Lighting - underwater LED (dual engine)
Factory installed GR31 AGM batteries
Navigation
Nav Package, Simrad 9" NSX
(includes: Simrad NSX 9” MFD (GPS, Chart plotter, Fishfinder), active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan), Integrated Mercury SmartCraft Connect and C-Map® DiscoverTM X Chart Card: North America/Canada)
Nav Package, Simrad 9" NSX Add'l Display
Nav Package, Simrad 9" NSX Add'l Display
Electronics
VHF Radio (Simrad)
VHF Radio (Simrad)
VesselView 4 display
(not compatible with 115 EXLPT EFI Dual Command Thrust engines OR 15 CXL EFI Dual FourStroke engines)
Stereo - JL Audio AM/FM
Stereo JL Audio MM50 AM/FM with waterproof speakers (4), MP3/USB inputs, and Bluetooth compatible
CMAP Discovery X Chart Card - Asia
(Only compatible with NSX Displays)
First Mate Safety & Security System Fob Kit
Includes additional Man Overboard (MOB) FOB’s for additional passengers (Qty 4)
CMAP Discovery X Chart Card - South America/Caribbean
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - North/Central Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Arica/Arabic Sea
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Australia/New Zealand
(Only compatible with NSX Displays)
First Mate Safety & Security Sys – Single Engine
(Includes Captain FOB and 3 passenger FOB’s) (Not compatible with Dual Engine options)
Packages
Standard canvas cover package
Console cover (black or blue), leaning post cover (black or blue) (delete w/ leaning post with livewell), leaning post with livewell cover (deluxe) (black or blue) (not included w/ standard leaning post)
Seating canvas cover package
Console seat and backrest cover (black or blue), bow cushion cover (black or blue) and stern seat backrest cover (black or blue)
Sunshades
Sunshade at cockpit
(must select Fiberglass Hardtop)
Sunshade - at bow
(must select Fiberglass Hardtop)

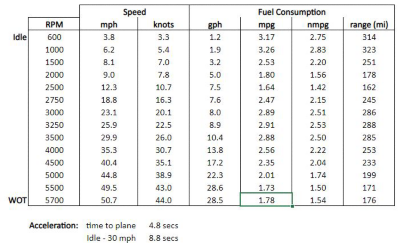

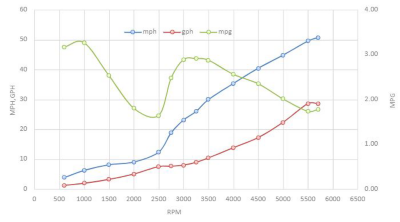

Model: 230 Outrage
Hull #: USBWCE0013F617
Engine: Mercury Twin 150 Four Stroke
Horsepower: 300
Gear Ratio: 1.92 : 1
Prop: 14 3/8” x 19” Enertia
Fuel Capacity: 110 gal
Notable Options: Hardtop, Freshwater, Aft Sunshade
Test Date: 11-July-2016
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 5,010 lbs
Fuel: 56 gal
Water: 0 gal
Test Gear: 25 lbs
Personnel: 370 lbs
Test Weight: 5,749 lbs
Water Conditions: 87° F
Weather Conditions: 92° F

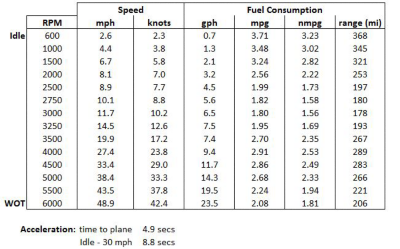

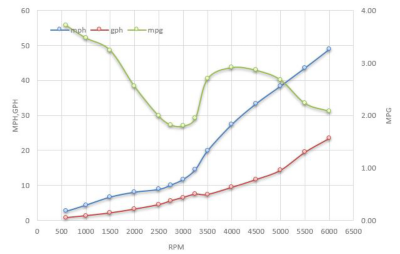

Model: 230 Outrage
Hull #: USBWCE2261C818
Engine: Mercury 250 V8 AMS
Horsepower: 250
Gear Ratio: 1.85 : 1
Prop: 14 1/4" x 18" Enertia
Fuel Capacity: 110 gallons
Notable Options: Hardtop, Anchor Windlass, Portable Head, Stereo
Test Date: 18-April-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 42 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 405 lbs
Test Weight: N/A
Water Conditions: 70° F
Weather Conditions: 69° F

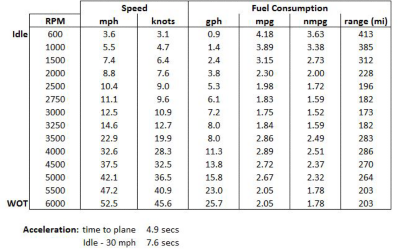

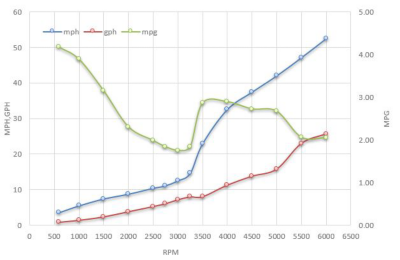

Model: 230 Outrage
Hull #: USBWCE2261C818
Engine: Mercury 300 V8 AMS
Horsepower: 300
Gear Ratio: 1.85 : 1
Prop: 16” x 18” Enertia
Fuel Capacity: 110 gallons
Notable Options: Hardtop, Anchor Windlass, Portable Head, Stereo
Test Date: 17-April-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 48 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 405 lbs
Test Weight: N/A
Water Conditions: 70° F
Weather Conditions: 60° F

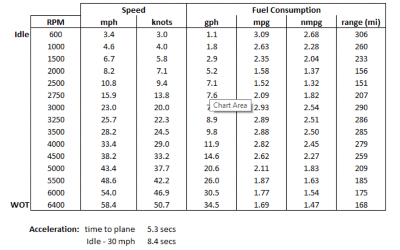

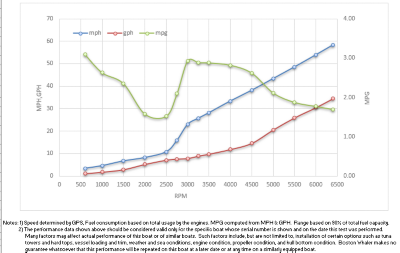

Model: 230 Outrage
Hull #: USBWCP0181H223
Engine: Mercury 400 V10 Verado
Horsepower: 400
Gear Ratio: 2.08:1
Prop: 22P Rev X
Fuel Capacity: 110 gallons
Notable Options: Bow Table, Fishing Package, Ski Pylon, Hardtop w/ Outriggers, Stereo, Dual Simrad MFD, VHF Radio
Test Date: 22-March-2023
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 47 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 385 lbs
Test Weight: N/A
Water Conditions: 74 degrees F
Weather Conditions: 75 degrees F
Model: 230 Outrage
Hull #: USBWCE0013F617
Engine: Mercury Twin 150 Four Stroke
Horsepower: 300
Gear Ratio: 1.92 : 1
Prop: 14 3/8” x 19” Enertia
Fuel Capacity: 110 gal
Notable Options: Hardtop, Freshwater, Aft Sunshade
Test Date: 11-July-2016
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 5,010 lbs
Fuel: 56 gal
Water: 0 gal
Test Gear: 25 lbs
Personnel: 370 lbs
Test Weight: 5,749 lbs
Water Conditions: 87° F
Weather Conditions: 92° F
Model: 230 Outrage
Hull #: USBWCE2261C818
Engine: Mercury 250 V8 AMS
Horsepower: 250
Gear Ratio: 1.85 : 1
Prop: 14 1/4" x 18" Enertia
Fuel Capacity: 110 gallons
Notable Options: Hardtop, Anchor Windlass, Portable Head, Stereo
Test Date: 18-April-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 42 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 405 lbs
Test Weight: N/A
Water Conditions: 70° F
Weather Conditions: 69° F
Model: 230 Outrage
Hull #: USBWCE2261C818
Engine: Mercury 300 V8 AMS
Horsepower: 300
Gear Ratio: 1.85 : 1
Prop: 16” x 18” Enertia
Fuel Capacity: 110 gallons
Notable Options: Hardtop, Anchor Windlass, Portable Head, Stereo
Test Date: 17-April-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 48 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 405 lbs
Test Weight: N/A
Water Conditions: 70° F
Weather Conditions: 60° F
Model: 230 Outrage
Hull #: USBWCP0181H223
Engine: Mercury 400 V10 Verado
Horsepower: 400
Gear Ratio: 2.08:1
Prop: 22P Rev X
Fuel Capacity: 110 gallons
Notable Options: Bow Table, Fishing Package, Ski Pylon, Hardtop w/ Outriggers, Stereo, Dual Simrad MFD, VHF Radio
Test Date: 22-March-2023
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 47 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 385 lbs
Test Weight: N/A
Water Conditions: 74 degrees F
Weather Conditions: 75 degrees F
Third parties
We can tell you how innovative and industry-leading our products are, but don’t take our word for it! Learn what others have to say in these third-party reviews.
