170 Montauk

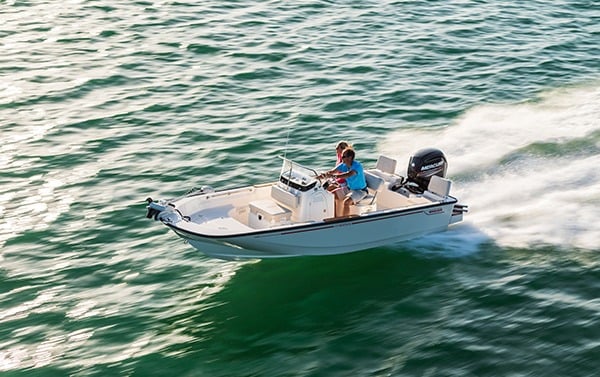

The classic, unsinkable 170 Montauk boat is a multi-purpose 17-foot inshore center console boat that can do anything. It’s clean, timeless style, open layout, and easy-to-own utilitarian design make it ideal for fishing, cruising the beach, or just relaxing with family on the weekend. Integrated Simrad® technology at the helm, a 25-gal. fuel tank, and a large forward fish box that doubles as storage gives you everything you need to enjoy the day no matter how you choose to spend it.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.
Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
170 MONTAUK FEATURES

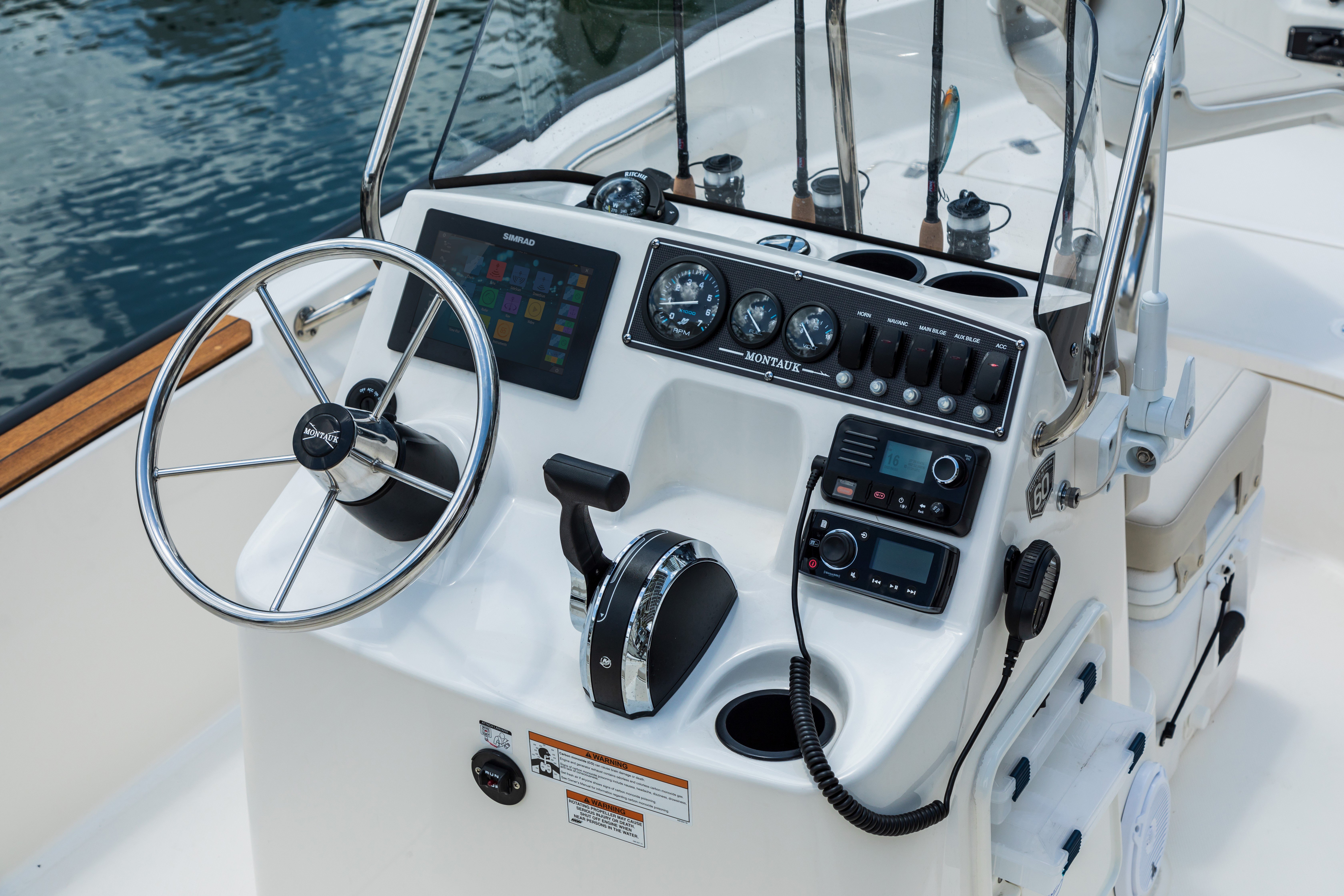

- Seamlessly integrated Simrad technology for precise navigation and enhanced onboard control
- Convenient new integrated forward fishbox with overboard drain.

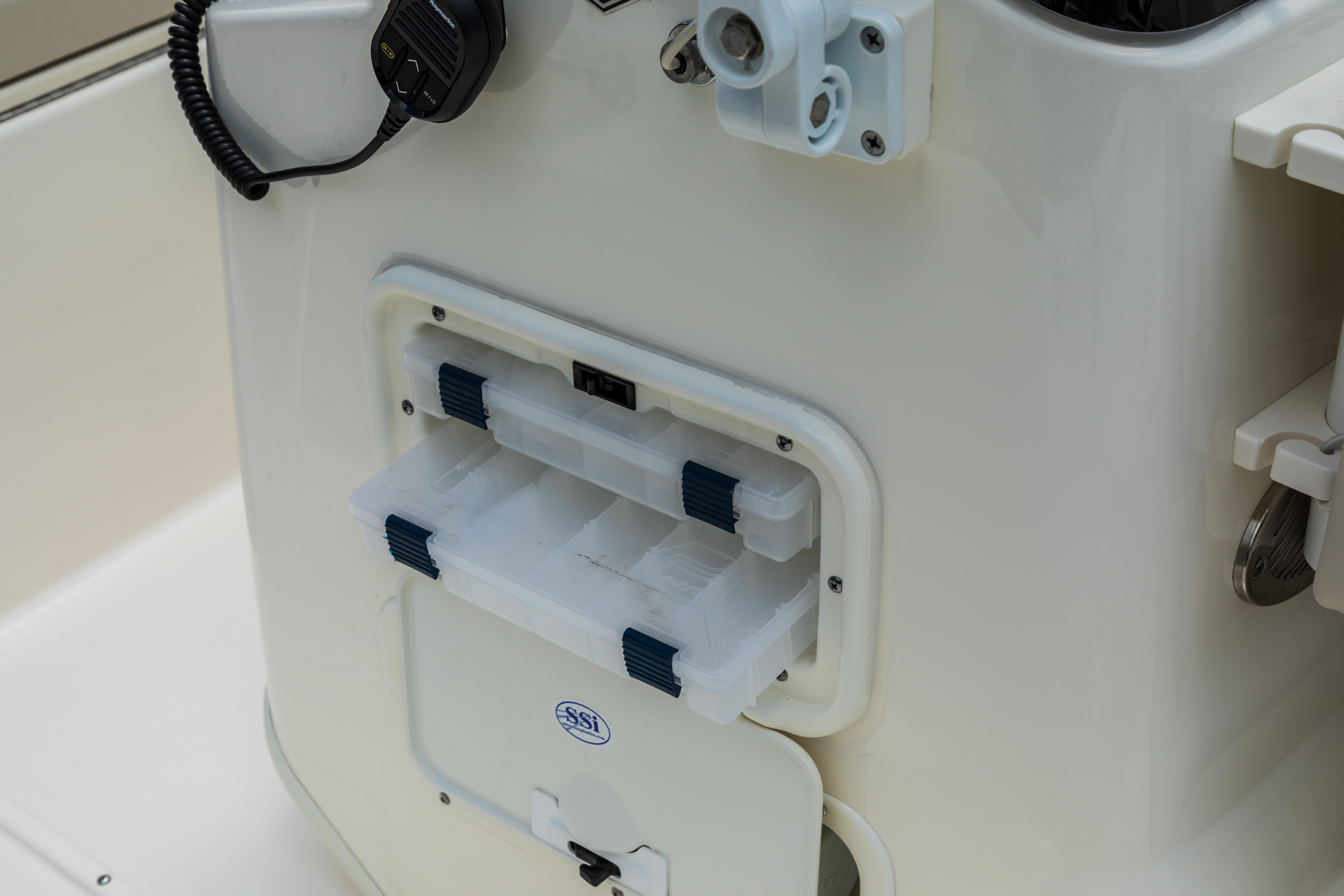

- Optional Fishing Package includes tackle drawers, console-mounted rod holders, and 72-quart cooler seat with cushion and backrest.
- Standard 90-hp Mercury® Command Thrust FourStroke engine.
- Integrated 25-gallon fuel tank for added range.
- Standard galvanized trailer with swing tongue, disc brakes and LED lights for safe, easy transport.
.png)
Capacity
7
Persons Capacity
25 gallons (94.6 L)
Fuel Capacity
1,900 lbs (862 kg)
Maximum Weight Capacity
2,800 lbs (1,270 kg)
Swamped Capacity
Dimensions
17’ 4” (5.28 m)
L.O.A.
7’ 3” (2.21 m)
Beam
4'11” (1.49 m)
Bridge Clearance (no top)
6'11” (2.10 m)
Bridge Clearance (with suntop)
12” (0.30 m)
Draft
25” (0.50 m)
Transom Height
Engines
115 HP (85.8 kW)
Maximum Horsepower
1,900 lbs (186 kg)
Maximum Engine Weight
90 HP (67 kW)
Minimum Horsepower
Weight
1,700 lbs (771 kg)
Weight (dry, no engine)
2,254 lbs. (1,022 kg)
Weight (with engine, fuel and water)
7
Persons Capacity
25 gallons (94.6 L)
Fuel Capacity
1,900 lbs (862 kg)
Maximum Weight Capacity
2,800 lbs (1,270 kg)
Swamped Capacity
17’ 4” (5.28 m)
L.O.A.
7’ 3” (2.21 m)
Beam
4'11” (1.49 m)
Bridge Clearance (no top)
6'11” (2.10 m)
Bridge Clearance (with suntop)
12” (0.30 m)
Draft
25” (0.50 m)
Transom Height
115 HP (85.8 kW)
Maximum Horsepower
1,900 lbs (186 kg)
Maximum Engine Weight
90 HP (67 kW)
Minimum Horsepower
1,700 lbs (771 kg)
Weight (dry, no engine)
2,254 lbs. (1,022 kg)
Weight (with engine, fuel and water)
Standard features & Options
Access door with lockable stainless steel latch
Acrylic windshield
Binnacle control (Mercury)
Compass
Console face - tan gelcoat
Courtesy light
Drink holders (2)
Electric horn
Electrical switch panel with circuit breaker protection
Electronics mounting area
Fire extinguisher pocket
Grab rail - welded stainless steel
Interior LED light
Secondary footrest (for seated position)
Steering wheel - stainless steel
19” interior freeboard
8” stainless steel cleats (5)
Aft cockpit storage with fiberglass covers (2)
Bow locker with fiberglass cover and overboard drain
Bow rail - welded stainless steel
Cockpit courtesy light
Drink holders (6)
Forward fishbox / storage with overboard drain
Heavy-duty rub rail
Lifting eyes - bow and stern
Rod holders (4)
Self-bailing cockpit sole
Side rails - welded stainless steel
Swim platform (fiberglass) with grab rail and telescoping stainless steel swim ladder
Dual axle disc brakes
LED lights
Tie-downs
Torsion Axle
Trailer jack
Winch with nylon strap
Spare tire
150 XL EFI Mercury® FourStroke engine
Smart Craft digital gauges
Bilge pump with float switch
Classic style navigation lights
Dual battery boxes and switch
Dual battery wiring
Fuel tank (66.5 gallons)
Hydraulic steering
Stainless steel propeller
Vessel view mobile
Aft quarter seats with removable base cushion and integrated backrest cushion (port and starboard)
Reversible pilot seat with locking backrest and storage underneath - includes 2 rod holders
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
Gelcoat Full Hull Colors
Classic Desert Tan
Classic Desert Tan
(full hull)
Glacier Green
Glacier Green
(full hull)
Light Blue
Light Blue
(full hull)
White
White
Platinum
Platinum
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver model designator and harpoon)
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Packages
Rails - complete rail package
(includes high bow rail, low profile bow rail, high aft rail, low profile aft rail)
Teak package
(includes teak boarding steps and teak flooring on swim ladder)
Fishing package
(includes compass, console mounted rod holders (4), cooler (72 qt) with cushion and backrest, tackle drawers)
Railings and Rub Rails
Rails - bow rail (low profile)
(deletes standard bow rail) (compatible with split bow rail)
Rails - stern rail (low profile)
(deletes standard stern rail)
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Rails- split bow rail with high side rails
(replaces standard bow rail)(not compatible with trolling motor panel)
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Fishing Features
Trolling motor panel
with battery box and wiring (not compatible with bow rail)(includes low profile bow rail)
Livewell with blue interior
(located at reversible pilot seat)
Navigation
Nav Package, Simrad 7" NSX
Nav Package, Simrad 7" NSX
Nav Package, Simrad 9" NSX
Nav Package, Simrad 9" NSX
Electronics
VHF Radio (Simrad)
VHF Radio (Simrad)
Stereo - JL Audio AM/FM
with waterproof speakers (2) and MP3/USB inputs (JL Audio Bluetooth enabled)
First Mate Safety & Security System Fob Kit
First Mate Safety & Security System Fob Kit
CMAP Discovery X Chart Card - South America/Caribbean
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Australia/New Zealand
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - North/Central Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Arica/Arabic Sea
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Asia
(Only compatible with NSX Displays)
FIRST MATE SAFETY & SECURITY SYS SGL
FIRST MATE SAFETY & SECURITY SYS SGL
Standard Features
Access door with lockable stainless steel latch
Acrylic windshield
Binnacle control (Mercury)
Compass
Console face - tan gelcoat
Courtesy light
Drink holders (2)
Electric horn
Electrical switch panel with circuit breaker protection
Electronics mounting area
Fire extinguisher pocket
Grab rail - welded stainless steel
Interior LED light
Secondary footrest (for seated position)
Steering wheel - stainless steel
19” interior freeboard
8” stainless steel cleats (5)
Aft cockpit storage with fiberglass covers (2)
Bow locker with fiberglass cover and overboard drain
Bow rail - welded stainless steel
Cockpit courtesy light
Drink holders (6)
Forward fishbox / storage with overboard drain
Heavy-duty rub rail
Lifting eyes - bow and stern
Rod holders (4)
Self-bailing cockpit sole
Side rails - welded stainless steel
Swim platform (fiberglass) with grab rail and telescoping stainless steel swim ladder
Dual axle disc brakes
LED lights
Tie-downs
Torsion Axle
Trailer jack
Winch with nylon strap
Spare tire
150 XL EFI Mercury® FourStroke engine
Smart Craft digital gauges
Bilge pump with float switch
Classic style navigation lights
Dual battery boxes and switch
Dual battery wiring
Fuel tank (66.5 gallons)
Hydraulic steering
Stainless steel propeller
Vessel view mobile
Aft quarter seats with removable base cushion and integrated backrest cushion (port and starboard)
Reversible pilot seat with locking backrest and storage underneath - includes 2 rod holders
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
Options
Gelcoat Full Hull Colors
Classic Desert Tan
Classic Desert Tan
(full hull)
Glacier Green
Glacier Green
(full hull)
Light Blue
Light Blue
(full hull)
White
White
Platinum
Platinum
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver model designator and harpoon)
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Packages
Rails - complete rail package
(includes high bow rail, low profile bow rail, high aft rail, low profile aft rail)
Teak package
(includes teak boarding steps and teak flooring on swim ladder)
Fishing package
(includes compass, console mounted rod holders (4), cooler (72 qt) with cushion and backrest, tackle drawers)
Railings and Rub Rails
Rails - bow rail (low profile)
(deletes standard bow rail) (compatible with split bow rail)
Rails - stern rail (low profile)
(deletes standard stern rail)
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Rails- split bow rail with high side rails
(replaces standard bow rail)(not compatible with trolling motor panel)
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Fishing Features
Trolling motor panel
with battery box and wiring (not compatible with bow rail)(includes low profile bow rail)
Livewell with blue interior
(located at reversible pilot seat)
Navigation
Nav Package, Simrad 7" NSX
Nav Package, Simrad 7" NSX
Nav Package, Simrad 9" NSX
Nav Package, Simrad 9" NSX
Electronics
VHF Radio (Simrad)
VHF Radio (Simrad)
Stereo - JL Audio AM/FM
with waterproof speakers (2) and MP3/USB inputs (JL Audio Bluetooth enabled)
First Mate Safety & Security System Fob Kit
First Mate Safety & Security System Fob Kit
CMAP Discovery X Chart Card - South America/Caribbean
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Australia/New Zealand
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - North/Central Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Arica/Arabic Sea
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Asia
(Only compatible with NSX Displays)
FIRST MATE SAFETY & SECURITY SYS SGL
FIRST MATE SAFETY & SECURITY SYS SGL
Model: 170 Montauk
Hull #: USBWCE2318D717
Engine: Mercury 90 FourStroke
Horsepower: 90
Gear Ratio: 2:38 : 1
Prop: 14 1/4 x 18 Enertia
Fuel Capacity: 25 gallons
Notable Options: Fishing package, livewell, teak package, bimini top
Test Date: 22-May-2017
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 2,050 lbs
Fuel: 25 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 320 lbs
Test Weight: 2,544 lbs
Water Conditions: 80° F
Weather Conditions: 82° F
Model: 170 Montauk
Hull #: USBWCE2318D717
Engine: Mercury 115 FourStroke
Horsepower: 115
Gear Ratio: 2:38 : 1
Prop: 13 5/8 x 21P Enertia
Fuel Capacity: 25 gallons
Notable Options: Fishing package, livewell, teak package, bimini top
Test Date: 01-May-2017
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 2,050 lbs
Fuel: 25 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 390 lbs
Test Weight: 2,614 lbs
Water Conditions: 80° F
Weather Conditions: 83° F
Model: 170 Montauk
Hull #: USBWCE2318D717
Engine: Mercury 90 FourStroke
Horsepower: 90
Gear Ratio: 2:38 : 1
Prop: 14 1/4 x 18 Enertia
Fuel Capacity: 25 gallons
Notable Options: Fishing package, livewell, teak package, bimini top
Test Date: 22-May-2017
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 2,050 lbs
Fuel: 25 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 320 lbs
Test Weight: 2,544 lbs
Water Conditions: 80° F
Weather Conditions: 82° F
Model: 170 Montauk
Hull #: USBWCE2318D717
Engine: Mercury 115 FourStroke
Horsepower: 115
Gear Ratio: 2:38 : 1
Prop: 13 5/8 x 21P Enertia
Fuel Capacity: 25 gallons
Notable Options: Fishing package, livewell, teak package, bimini top
Test Date: 01-May-2017
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 2,050 lbs
Fuel: 25 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 390 lbs
Test Weight: 2,614 lbs
Water Conditions: 80° F
Weather Conditions: 83° F
